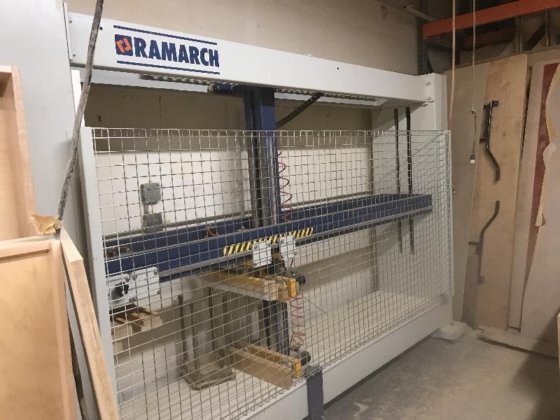

Ramarch PN-31 Case Clamp (Used, XXXX)

Model: PN-31
SN: N/A
Year: XXXX
220V; 60Hz; 3~
Stock#: 1809-04

Clamp capacity-- 2,500 x 1,300 x 600 mm (98.5" x 51,2" x 23,6")
Equipped with:
Motorized, push button controlled top pressure beam pressure shoes.
-- Top beam equipped with (3) adjustable clamping bars
-- Vertical side pressure beam with (2) adjustable clamping bars
A total of (10) pressure cylinders, (2) per each clamping bar.
-- Vertical beam locks in place with (4) air cylinders and rides on bearings for quick and easy positioning
Independent pressure control for top or side; built-in controls & pressure gauges into right side clamp frame.
$13,900.00
Replacement cost: $28,000.00, (approx.).
FOB: Hudson, NY

Clamp capacity-- 2,500 x 1,300 x 600 mm (98.5" x 51,2" x 23,6")
Equipped with:
Motorized, push button controlled top pressure beam pressure shoes.
-- Top beam equipped with (3) adjustable clamping bars
-- Vertical side pressure beam with (2) adjustable clamping bars
A total of (10) pressure cylinders, (2) per each clamping bar.
-- Vertical beam locks in place with (4) air cylinders and rides on bearings for quick and easy positioning
Independent pressure control for top or side; built-in controls & pressure gauges into right side clamp frame.

Replacement cost: $28,000.00, (approx.).
FOB: Hudson, NY
