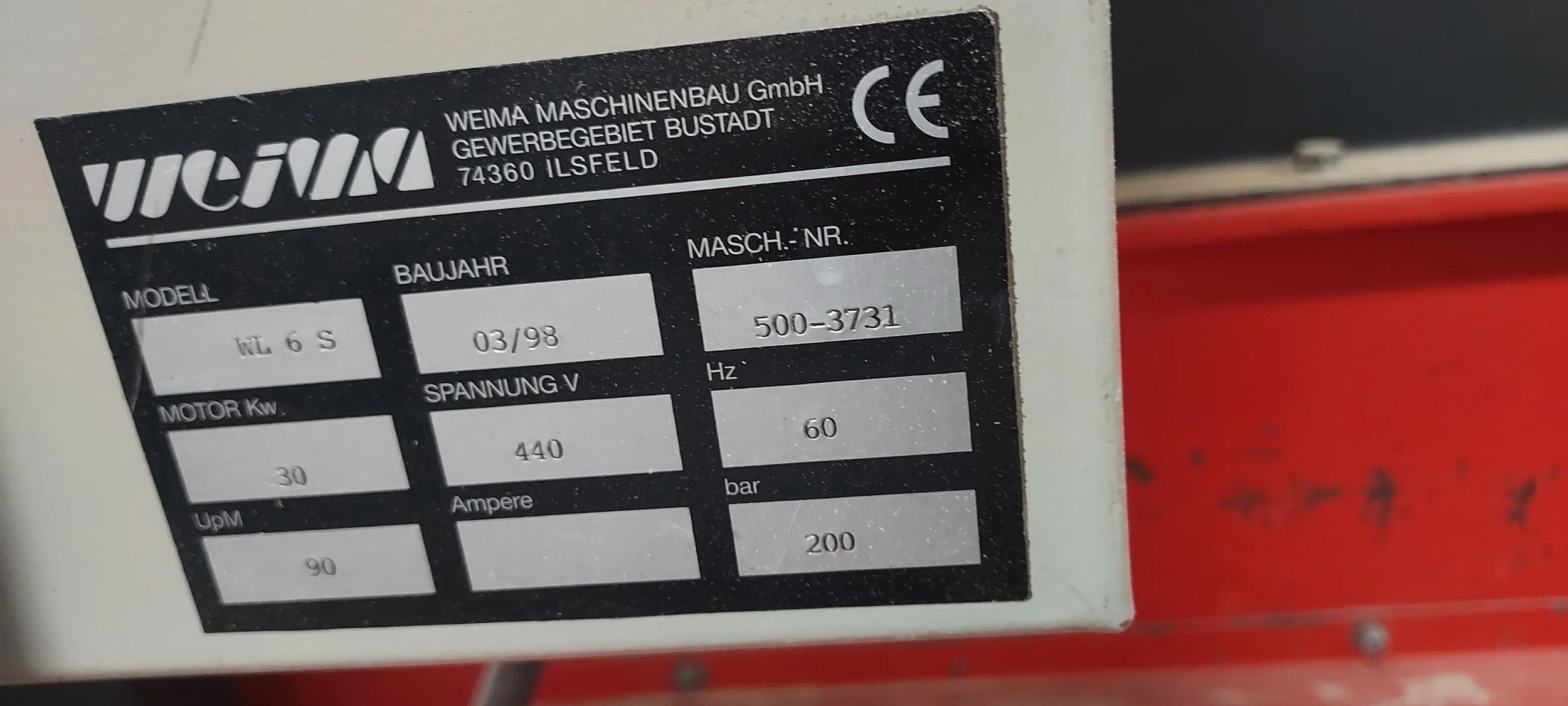

Weima single shaft shredder type WL 6 S
Power 30 kW

The Weima high performance shredders with their flexible
can process all kinds of wood materials (hardwood, softwood, chipboard, MDF materials
softwood, chipboard, MDF materials, plywood, veneer residues etc. ) into
and, in the case of bulky materials, achieve an enormous volume reduction of the material.
enormous volume reduction of the material.
Mode of operation:
The machine is equipped with a large hopper and can be fed by a conveyor belt or by hand.
fed by means of a conveyor belt or by hand. This hopper
can be adapted to individual needs and guarantees a continuous and cost effective
and cost effective material feed without the need for manual assistance.
manual assistance.
Technical specification WL 6 / 30kW
hopper opening: 800 x 1.000 mm
hopper capacity: 0,9 m³
working width of the rotor: 800 mm
diameter of the rotor: 252 mm
Driving power: 30 kW
Rotor speed: 80 -120 rpm
Number of knives: 42 pieces
type and size of knives: concave / 40 x 40 mm, cutting reversible crowns
Sieve perforation: 10-60 mm possible (standard 15-20 mm)
Painting: WEIMA standard RAL 2002 / 7016
connected load: 440 V +/- 5% / 60 Hz
weight: approx. 1.600 kg
