Brandt 1110FSB Edgebander with PreMill (Used) 2015
.016" to 1/8" (3mm) maximum edgebanding thickness capacity (coil or strip)
Edgeband length: Strips 9" minimum
5/16" min. to 1-1/2" max. panel thickness
Minimum panel length: 5-1/2"
Minimum panel width: 2-3/4"
Edge band height: 5/16 to 1-5/8"
Electronic EasyTouch program control
Automatic magazine for strip and coil feeding
Hot melt glue pot with 12 minute heat up time
Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15 minute span)
Pre-Mill station with 2 100mm heads
Guillotine for cutting up to 3 mm PVC from the coil
Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system
1/4 HP 12,000 RPM double motor end trim
1/3 HP 12,000 RPM top and bottom trim station (with DFC cutter heads, with combination radius/straight carbide inserts)

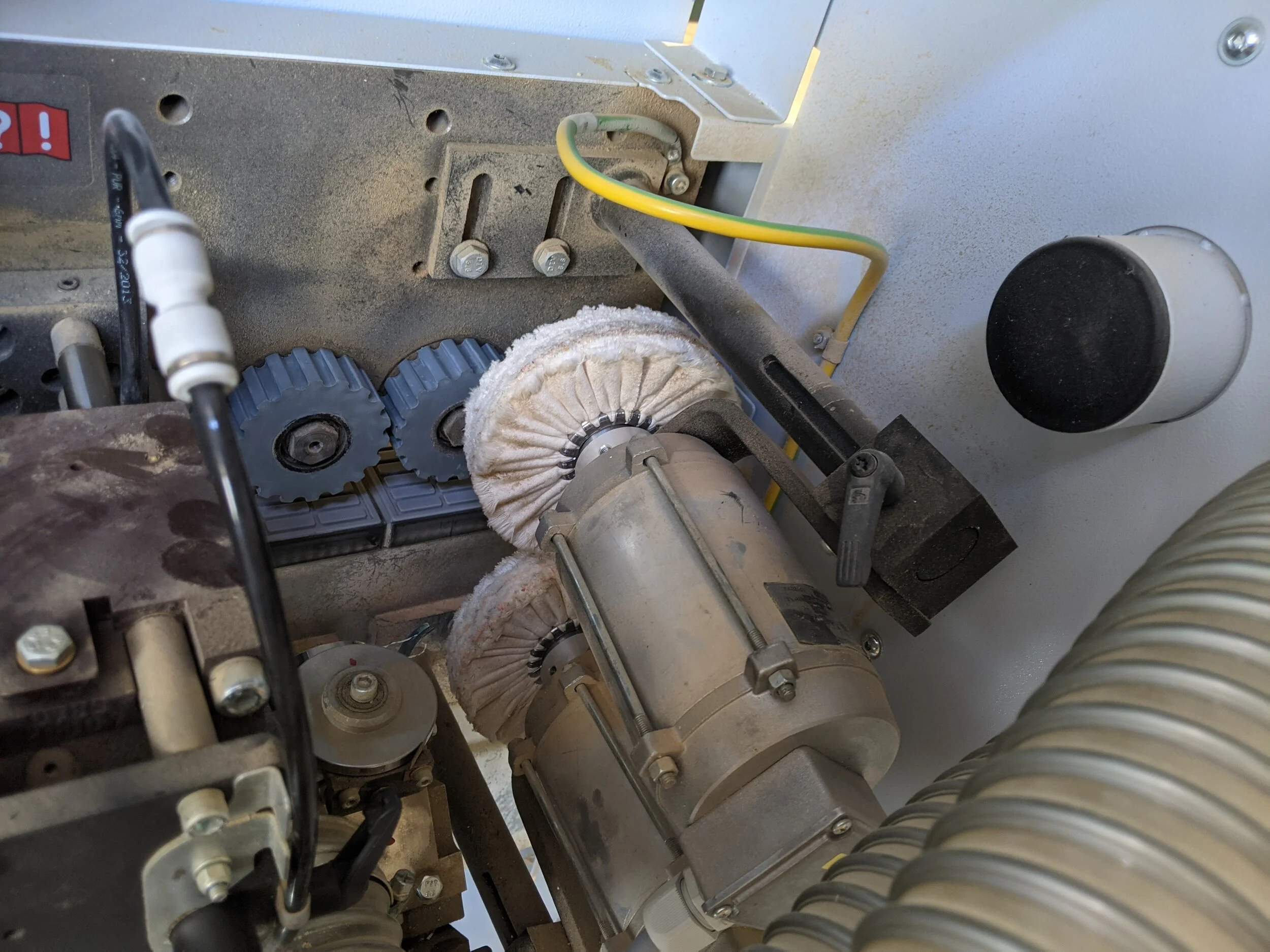

Top and bottom buffing station
3/4 HP 1-speed feed with speed of 26 FPM
Digital on top pressure beam for height indication
Adjustable infeed fence with digital readout
Automatic height adjustment with top pressure beam for all work stations
Digitals on top and bottom trim station
Dust extraction: (3) 80 mm outlets and (1) 100 mm outlet, 1000 CFM required
Compressed air connection: 6 bar (85 psi)
Isolation transformer with variable infeed voltage for balancing all 3 phases of incoming power 208-230/480volts
Machine Weight: 1,650 lbs.
Machine dimensions: 12'1" Long x 4' Wide x 5' Tall
Amperage required: 25 amps @ 230V 3-Phase
