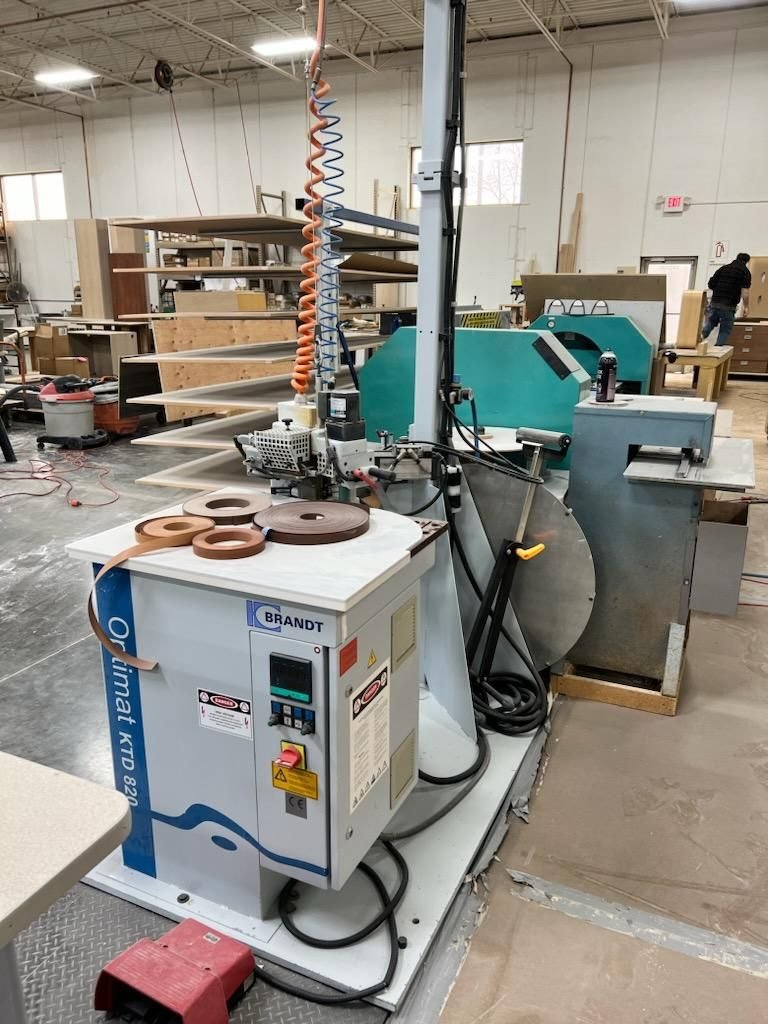

Brandt Contour Edgebander Model KDT820
Motor power approx. 3 kW approx.
Weight approx. 1,300LBS.
Working height 36” (40” with Vacuum cup)
Outer dimensions Width 50” Depth 72” Height 120”
Suction nozzle -
Workpiece thickness 1/2” to 1-5/8”
Min. part length 4” Min. part width 4”
edge thickness 0,4 - 3 mm
Roll magazine yes Strip magazine no
Glue type Hotmelt granulate
Manual Feed
Spring-loaded suspension for max. workpiece dimensions approx. 160” X 50”
Preheating unit thick PVC edges (infrared emitter)
Automatic edge cutting device
