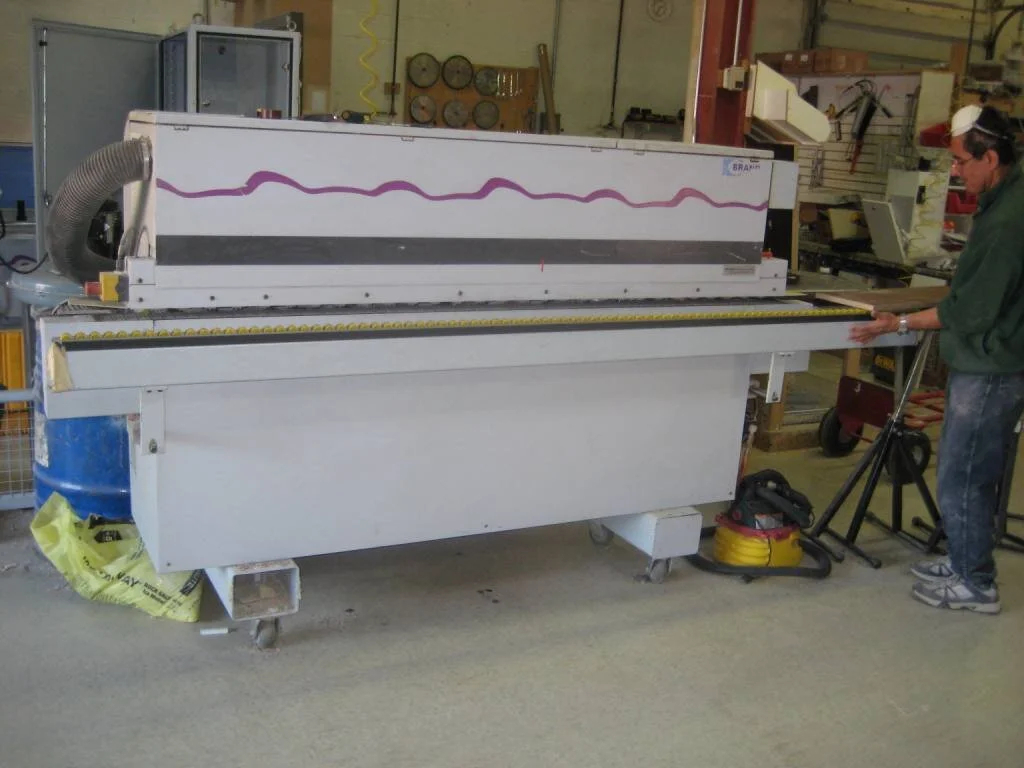

Brandt KD 56 Edgebander (USED, 2001)
Brandt KD 56 Edgebander (USED, 2001)
Model: KD 56
SN: 0-261-02-XXXX
Year: 2001
220/440V; 60Hz; 3~
Stock#: 1212-03
Product Details
Edge thickness cap. 0.4 - 3 mm (1/8");
Automatic coil & strip feed magazine, Guillotine for 3 mm PVC banding.
Fast startup (12 Min heat up) glue system; reversible rotation glue applicator roller.
Workstations: Vertical travel double motor front & rear end trim, (0.25 HP - 12,000 RPM motors ea); Top & bottom flush/bevel trimmers, Bevel 0° to 15°, (0.35 HP - 12,000 RPM motors ea); Top & bottom PVC scraping unit for up to 3 mm radius; Top & bottom buffing unit, 0.15 HP - 2,750 RPM ea. motor;
Feed speed 30 FPM.
Equipped with: Operator control panel at eye-level, Electronic line control (no limit switches), Digital height indicator on holddown beam, Electronic motor brakes on trimmers, 200 Hz Electronic (Solid State) Frequency inverter, used tooling & sound enclosure w/window. - INCLUDES: Pneumatic indexing of scrapers and trimming motors that are program controlled.
Brandt KD 56 Edgebander (USED, 2001)
Model: KD 56
SN: 0-261-02-XXXX
Year: 2001
220/440V; 60Hz; 3~
Stock#: 1212-03
Product Details
Edge thickness cap. 0.4 - 3 mm (1/8");
Automatic coil & strip feed magazine, Guillotine for 3 mm PVC banding.
Fast startup (12 Min heat up) glue system; reversible rotation glue applicator roller.
Workstations: Vertical travel double motor front & rear end trim, (0.25 HP - 12,000 RPM motors ea); Top & bottom flush/bevel trimmers, Bevel 0° to 15°, (0.35 HP - 12,000 RPM motors ea); Top & bottom PVC scraping unit for up to 3 mm radius; Top & bottom buffing unit, 0.15 HP - 2,750 RPM ea. motor;
Feed speed 30 FPM.
Equipped with: Operator control panel at eye-level, Electronic line control (no limit switches), Digital height indicator on holddown beam, Electronic motor brakes on trimmers, 200 Hz Electronic (Solid State) Frequency inverter, used tooling & sound enclosure w/window. - INCLUDES: Pneumatic indexing of scrapers and trimming motors that are program controlled.
Brandt KD 56 Edgebander (USED, 2001)
Model: KD 56
SN: 0-261-02-XXXX
Year: 2001
220/440V; 60Hz; 3~
Stock#: 1212-03
Product Details
Edge thickness cap. 0.4 - 3 mm (1/8");
Automatic coil & strip feed magazine, Guillotine for 3 mm PVC banding.
Fast startup (12 Min heat up) glue system; reversible rotation glue applicator roller.
Workstations: Vertical travel double motor front & rear end trim, (0.25 HP - 12,000 RPM motors ea); Top & bottom flush/bevel trimmers, Bevel 0° to 15°, (0.35 HP - 12,000 RPM motors ea); Top & bottom PVC scraping unit for up to 3 mm radius; Top & bottom buffing unit, 0.15 HP - 2,750 RPM ea. motor;
Feed speed 30 FPM.
Equipped with: Operator control panel at eye-level, Electronic line control (no limit switches), Digital height indicator on holddown beam, Electronic motor brakes on trimmers, 200 Hz Electronic (Solid State) Frequency inverter, used tooling & sound enclosure w/window. - INCLUDES: Pneumatic indexing of scrapers and trimming motors that are program controlled.
*This machine is offered in good running condition as taken from service and is subject to prior sale. Specifications are approximate and to the best of our knowledge. Verification is available upon request.
