Homag KAL 76/A20 Edgebander (USED, 1997)

Model: KAL 76/A20
SN: 0-200-08-2642
Year: 1997
480V; 60Hz; 3~
Stock#: N/A

Product Details

Edge Thickness edgebanding cap : 0.4 - 20 mm (3/4")., 70 mm min. panel width.

Equipped with: Magazine for up to 3 mm Coil stock, HPL & strip stock up to 20 mm; "Hot Melt" glue system with reversible glue roller applicator.

Pneumatically controlled pressure roll section with (7) total Pressure rollers.

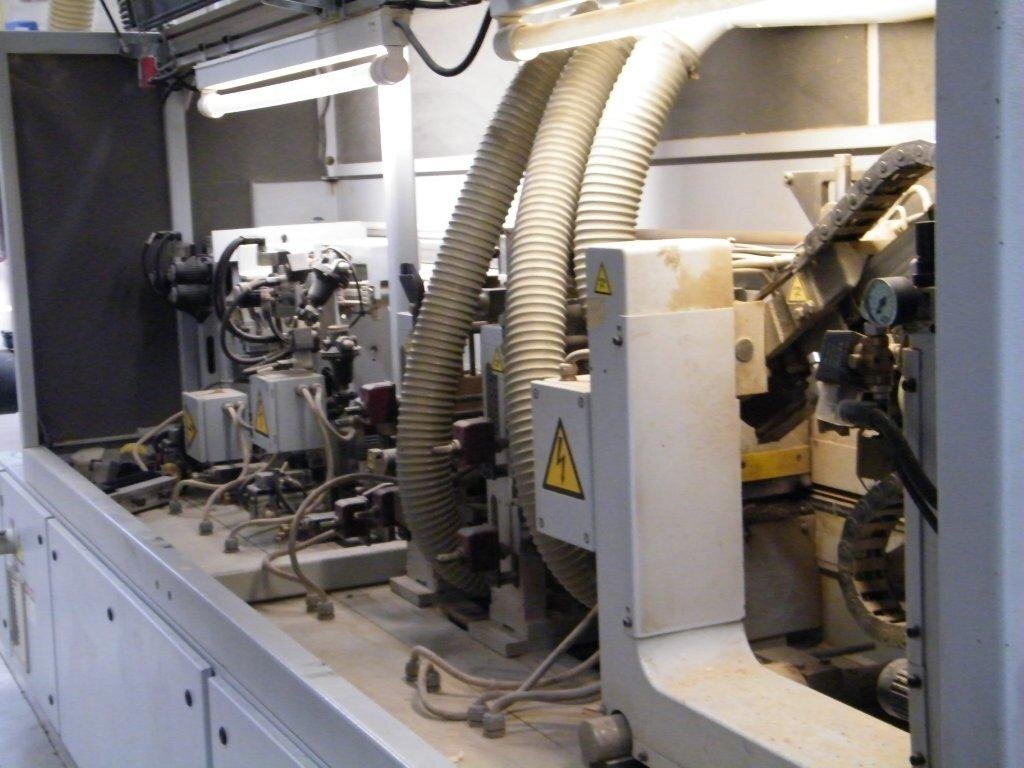

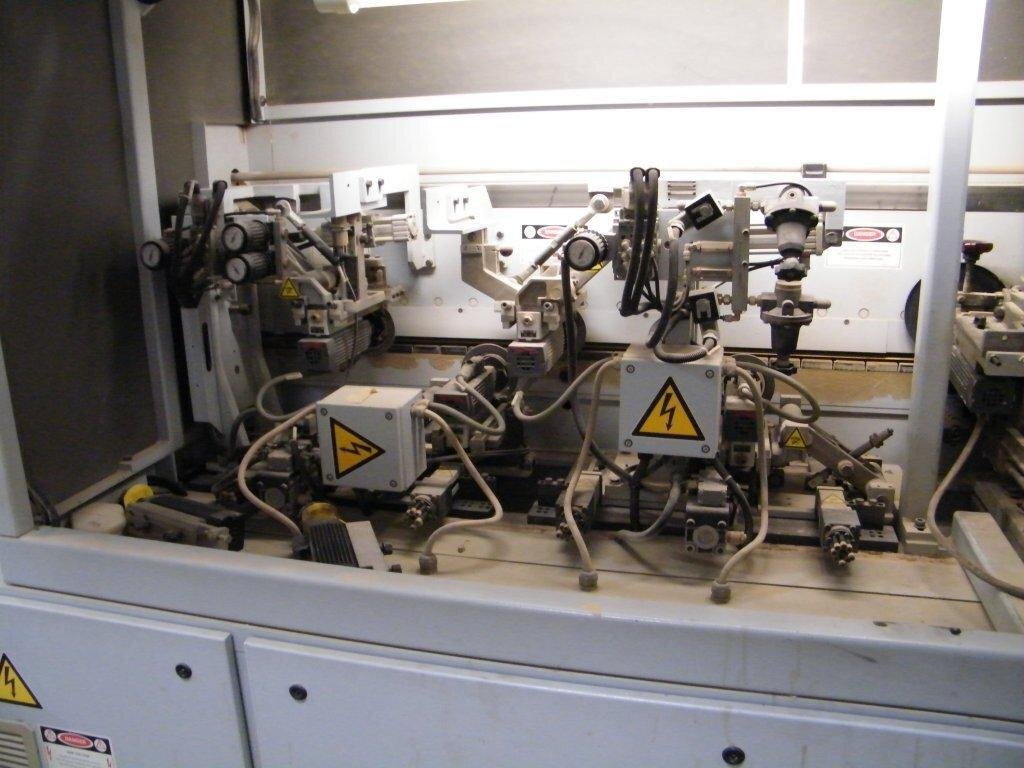

Workstations: Double motor front & rear end trim, straight & chamfer trimming (.80 HP - 12,000 RPM ea. motor).

Top & bottom rough trim (2 HP - 12,000 RPM ea. motor).

Top & bottom fine trim, tiltable 0° - 50° manually (0.5 HP - 12,000 RPM ea. motor).

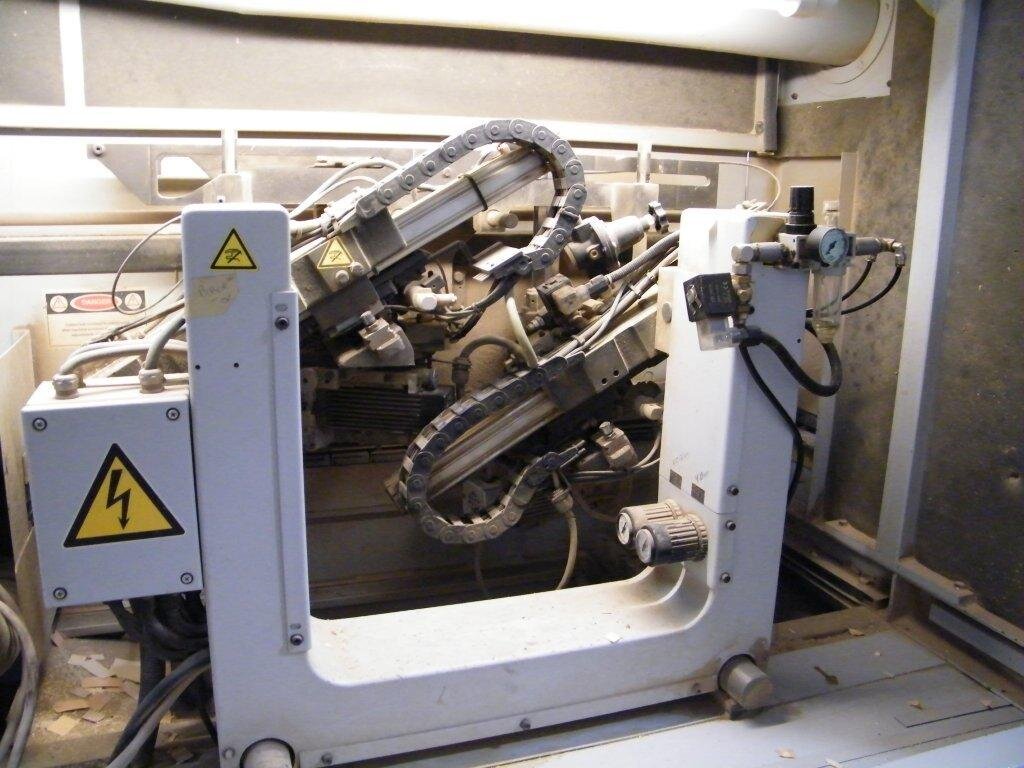

Four motor corner rounding station.

Profile scraping for PVC edges.

Last station: Top & bottom oscillating buffing unit (two 0.33 HP - 1,650 RPM motors).

Top pressure beam with double V-belts, 80 mm wide Heavy Duty feed chain with Auto-Lube

Feed speed up to 25 Meters per minute.

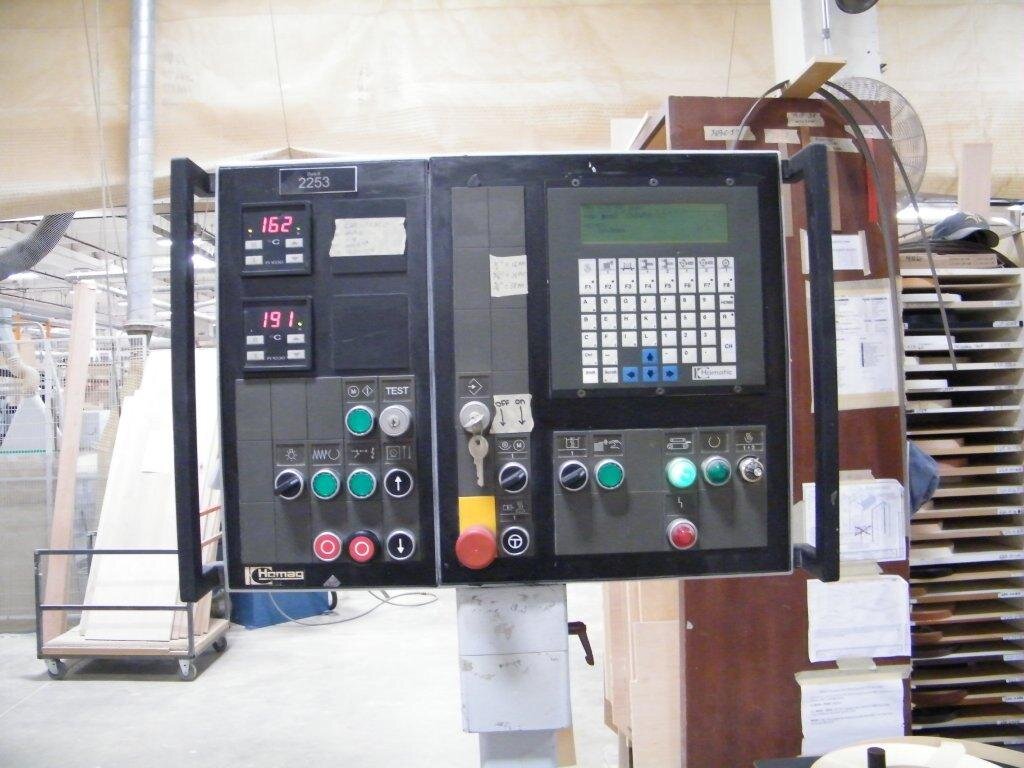

Complete with: SIKO Digital adjustments on work units, frequency converter, outrigger panel support, insulated sound cabins w/interior and overhead lighting for all trim workstations.
