Homag S200 (1110 FSB) Pre-Mill 2019 (Used)

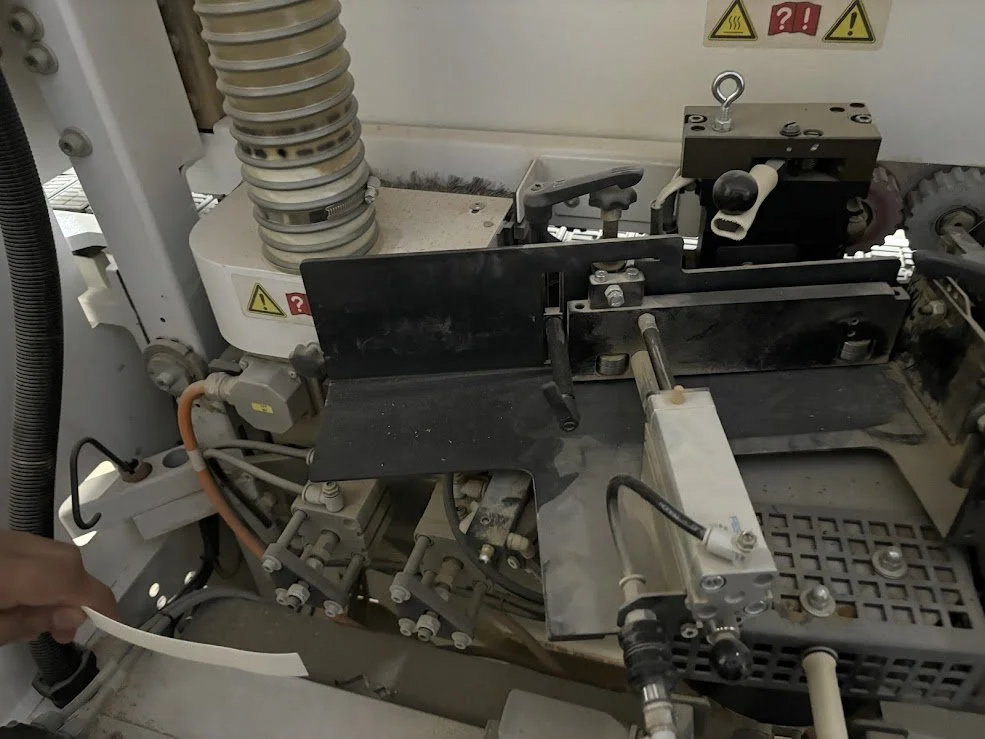

This 2019 used edgebander manufactured by Homag (Brandt) features a Pre-Mill Unit.
Technical Specifications:
016″ to 1/8″ maximum edgebanding thickness capacity (coil or strip)
Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness
Minimum panel length: 5-1/2"
Minimum panel width: 2-3/4"
Edgeband height: 5/16 to 1-5/8"
Electronic Easy Control with backlit LCD display
(2) 1 HP 12 000 RPM pre-milling units with diamond cutterheads
Automatic magazine for strip and coil feeding
Hot melt glue pot with 12 minute heat up time
Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15 minute span)
Guillotine for cutting up to 3 mm PVC from the coil
Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system
Premill with (2) 100mm heads
1/4 HP 12 000 RPM double motor end trim .33 HP
12 000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim trimming with overhang and radius/bevel trimming)
Top and bottom profile quick change scraping unit
1-speed feed with speed of 26 FPM
Digital on top pressure beam for height indication
Adjustable infeed fence with digital readout Automatic height adjustment with top pressure beam for all work stations
Digitals on top and bottom trim station
Dust extraction: (4) 80 mm outlets and (1) 100 mm outlet 1600 CFM required
Compressed air connection: 6 bar (85 psi) Isolation transformer with variable infeed voltage for balancing all 3 phases of incoming power
Machine Weight: 1 650 lbs.
Machine dimensions: 12'1" long x 4' wide
Amperage required @ 230 volt: 30 amps
