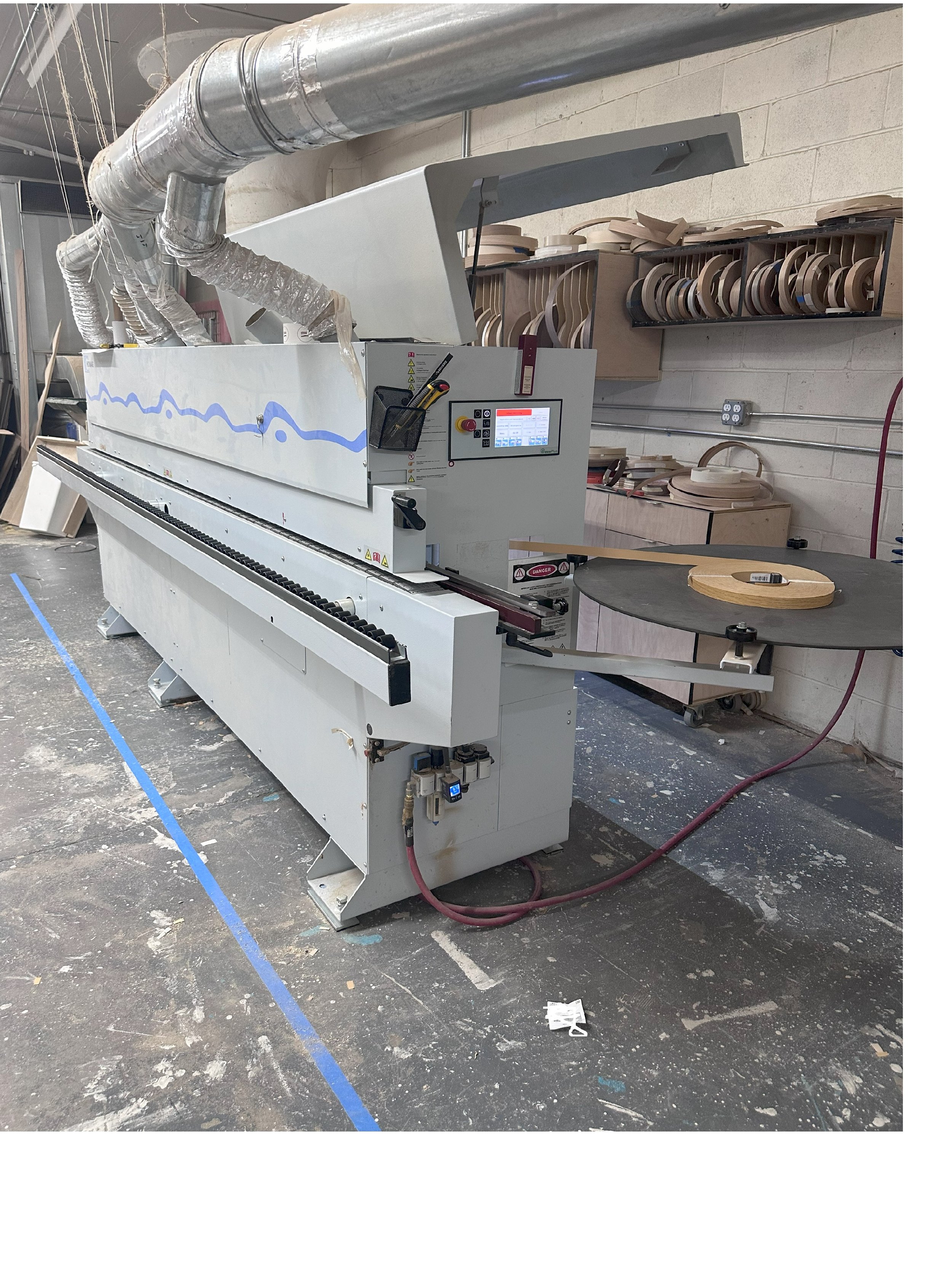

Homag S200 (1120 Auto) Pre-Mill 2018 (Used)
https://www.youtube.com/shorts/qfvWCJ09SDA

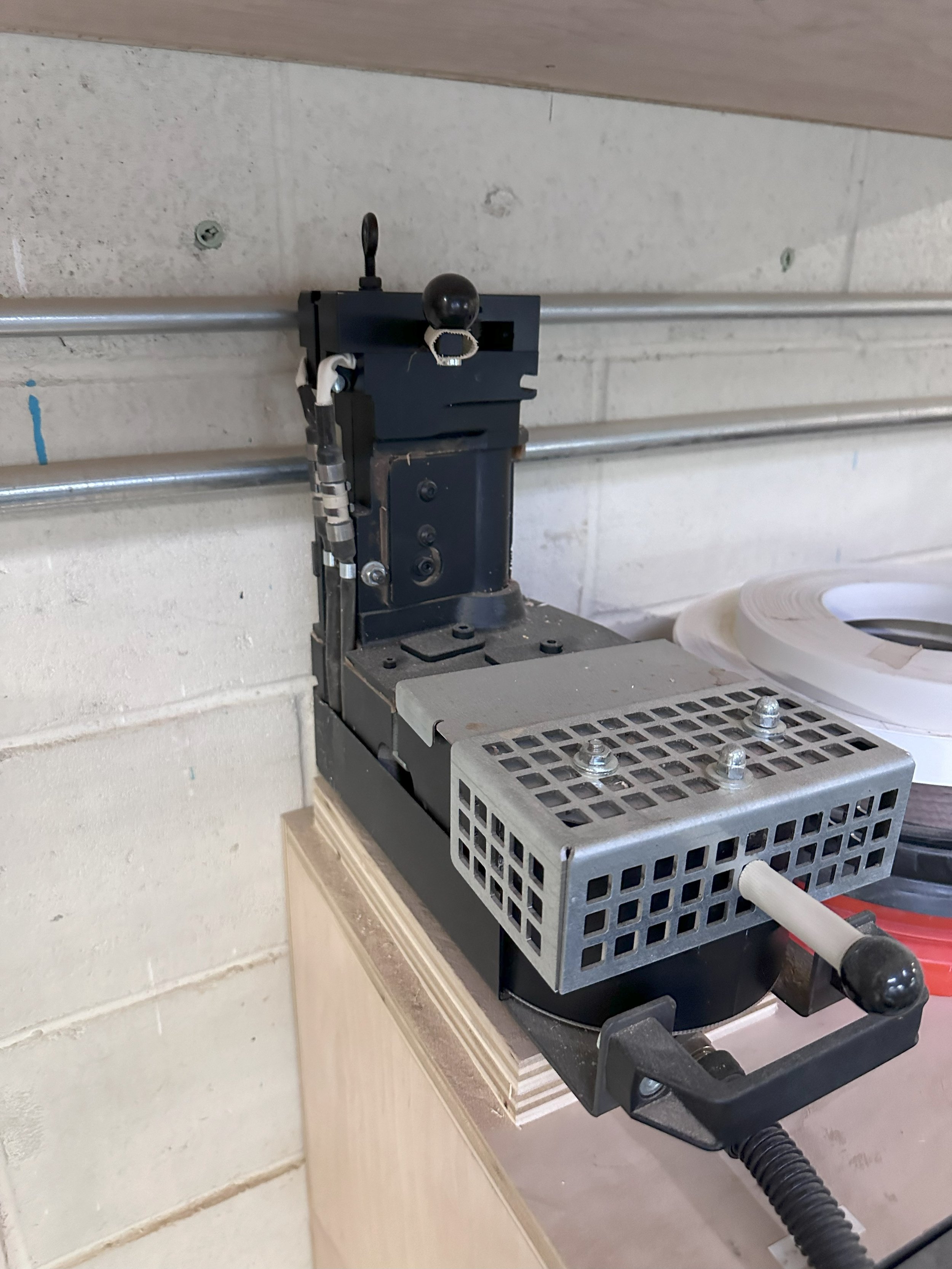

*Extra Glue Pot in mint condition included with this machine
Technical Specifications:
· 016″ to 1/8″ maximum edgebanding thickness capacity (coil or strip)
· Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness
· Minimum panel length: 5-1/2"
· Minimum panel width: 2-3/4"
· Edgeband height: 5/16 to 1-5/8"

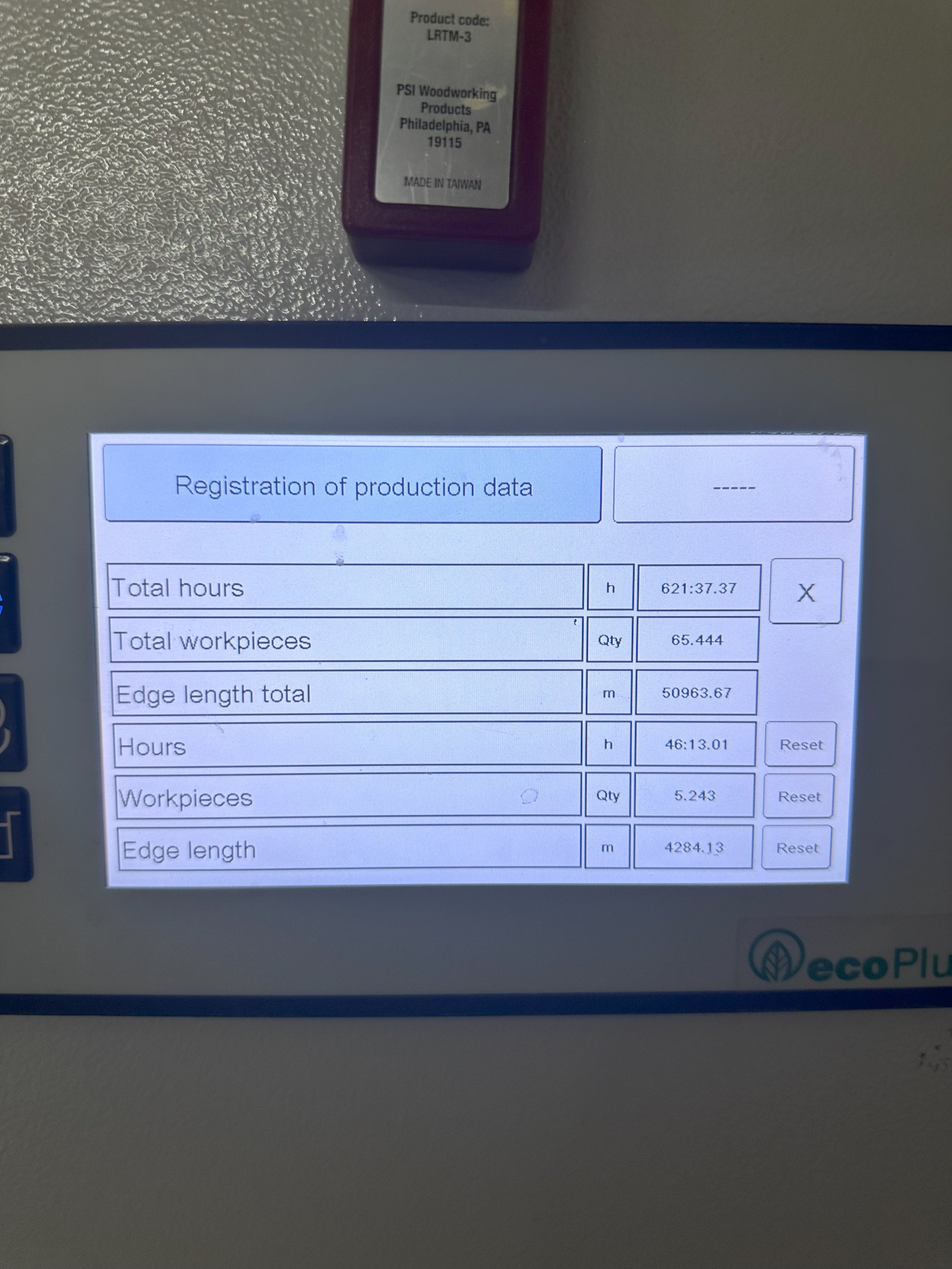

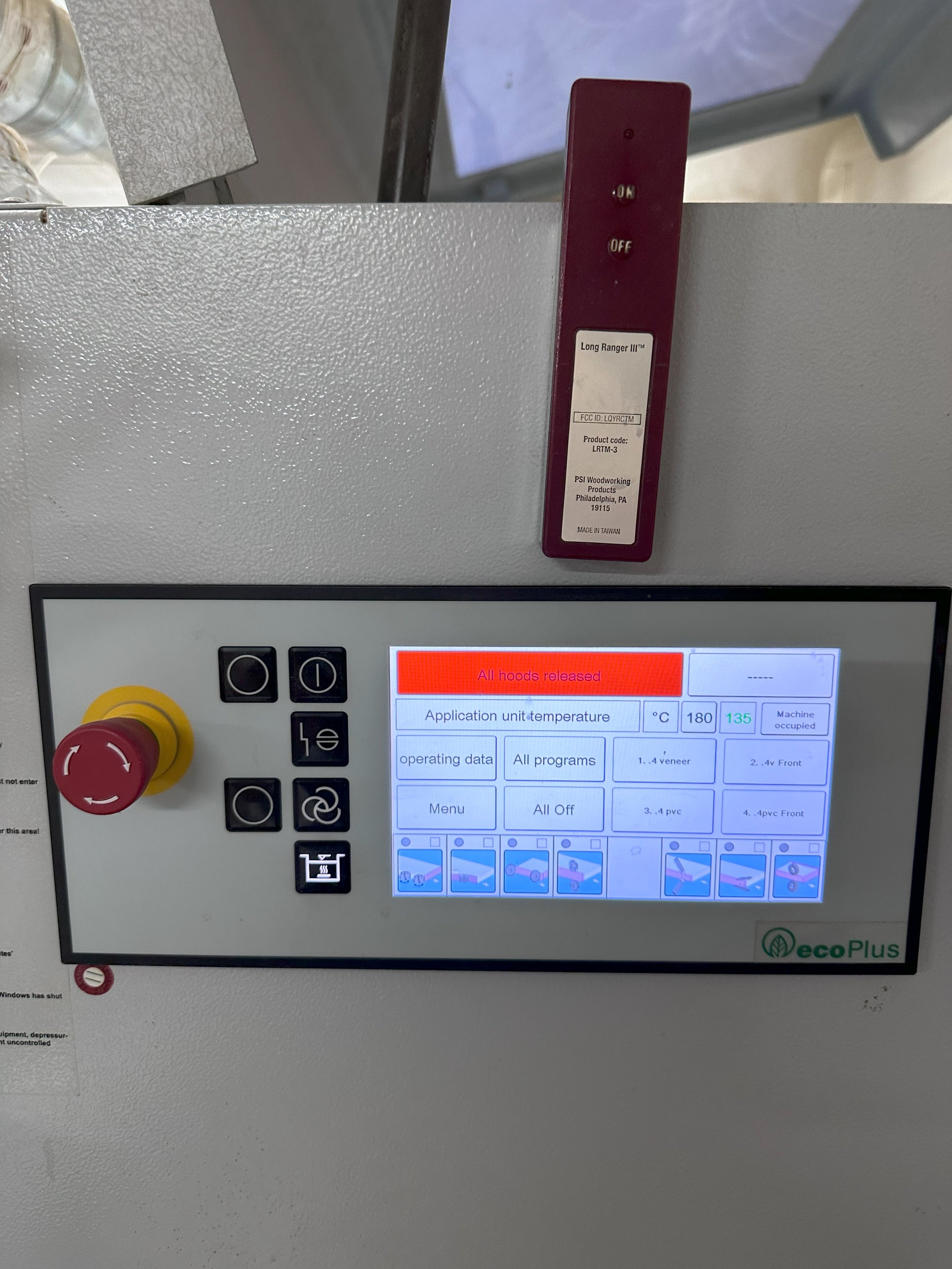

· Electronic Easy Control with backlit LCD display
· (2) 1 HP 12 000 RPM pre-milling units with diamond cutterheads
· Automatic magazine for strip and coil feeding
· Hot melt glue pot with 12-minute heat up time
· Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15-minute span)
· Guillotine for cutting up to 3 mm PVC from the coil

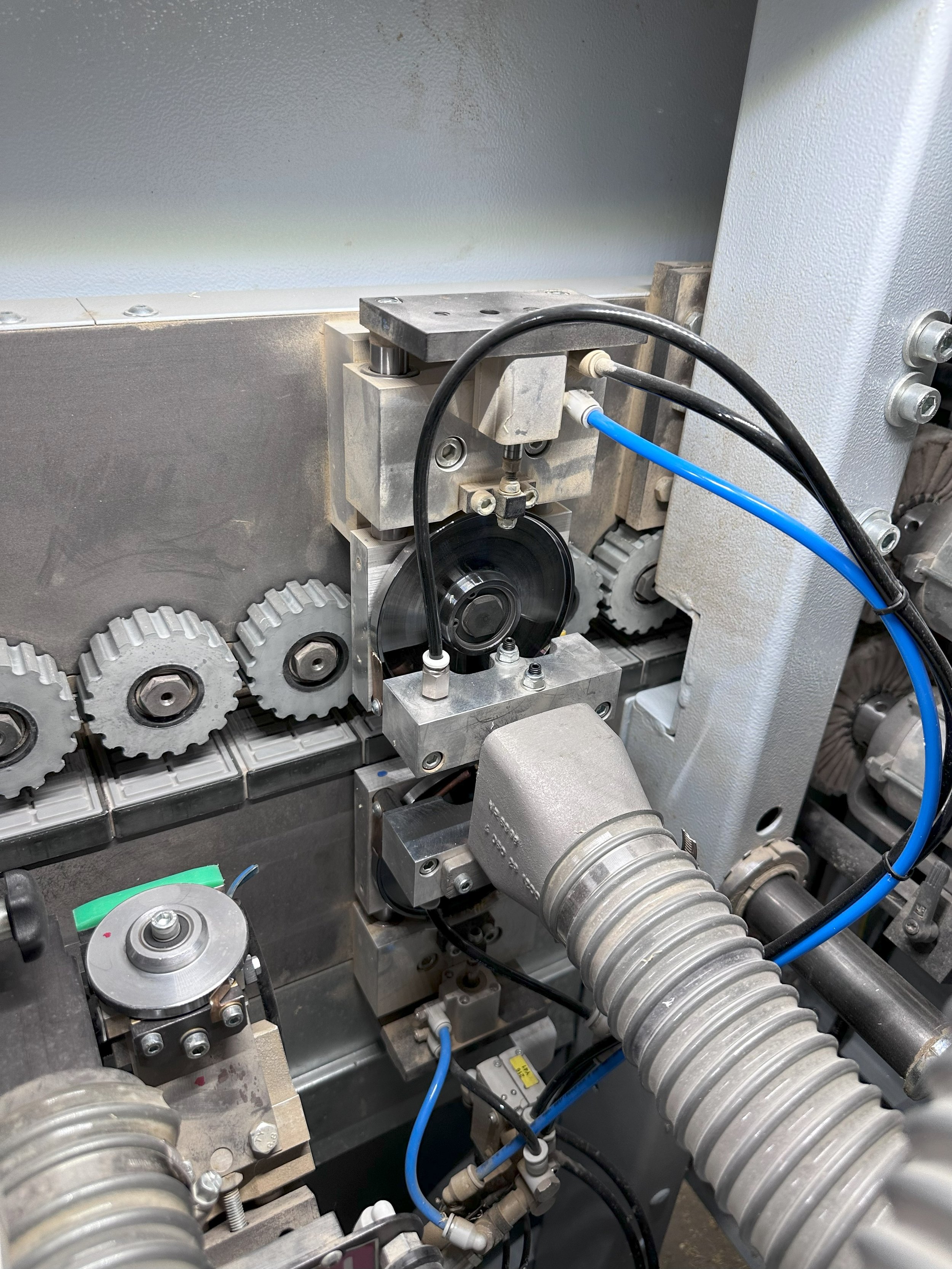

· Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system
· Pre-mill with (2) 100mm heads
· 1/4 HP 12 000 RPM double motor end trim .33 HP
· 12 000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim trimming with overhang and radius/bevel trimming)
·
https://www.youtube.com/shorts/qfvWCJ09SDA
*Extra Glue Pot in mint condition included with this machine
Technical Specifications:
· 016″ to 1/8″ maximum edgebanding thickness capacity (coil or strip)
· Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness
· Minimum panel length: 5-1/2"
· Minimum panel width: 2-3/4"
· Edgeband height: 5/16 to 1-5/8"
· Electronic Easy Control with backlit LCD display
· (2) 1 HP 12 000 RPM pre-milling units with diamond cutterheads
· Automatic magazine for strip and coil feeding
· Hot melt glue pot with 12-minute heat up time
· Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15-minute span)
· Guillotine for cutting up to 3 mm PVC from the coil
· Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system
· Pre-mill with (2) 100mm heads
· 1/4 HP 12 000 RPM double motor end trim .33 HP
· 12 000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim trimming with overhang and radius/bevel trimming)
·
https://www.youtube.com/shorts/qfvWCJ09SDA
*Extra Glue Pot in mint condition included with this machine
Technical Specifications:
· 016″ to 1/8″ maximum edgebanding thickness capacity (coil or strip)
· Edgeband length: strips 9" minimum 5/16" min. to 2" max. panel thickness
· Minimum panel length: 5-1/2"
· Minimum panel width: 2-3/4"
· Edgeband height: 5/16 to 1-5/8"
· Electronic Easy Control with backlit LCD display
· (2) 1 HP 12 000 RPM pre-milling units with diamond cutterheads
· Automatic magazine for strip and coil feeding
· Hot melt glue pot with 12-minute heat up time
· Automatic temperature reduction feature (lowers the glue temperature if no panel is run over a 15-minute span)
· Guillotine for cutting up to 3 mm PVC from the coil
· Pressure station with (1) motorized pressure roller plus (2) additional idle pressure roller with digital setting system
· Pre-mill with (2) 100mm heads
· 1/4 HP 12 000 RPM double motor end trim .33 HP
· 12 000 RPM top and bottom trim station equipped with two DFC combination straight/radius cutter heads and digital readouts (three different working positions: flush trim trimming with overhang and radius/bevel trimming)
·
· Top and bottom profile quick change scraping unit
· 1-speed feed with speed of 26 FPM
· Digital on top pressure beam for height indication
· Adjustable infeed fence with digital readout Automatic height adjustment with top pressure beam for all work stations
· Digitals on top and bottom trim station
· Dust extraction: (4) 80 mm outlets and (1) 100 mm outlet 1600 CFM required
· Compressed air connection: 6 bar (85 psi) Isolation transformer with variable infeed voltage for balancing all 3 phases of incoming power
· Machine Weight: 1 650 lbs.
· Machine dimensions: 12'1" long x 4' wide
· Amperage required @ 230 volt: 30 amps
