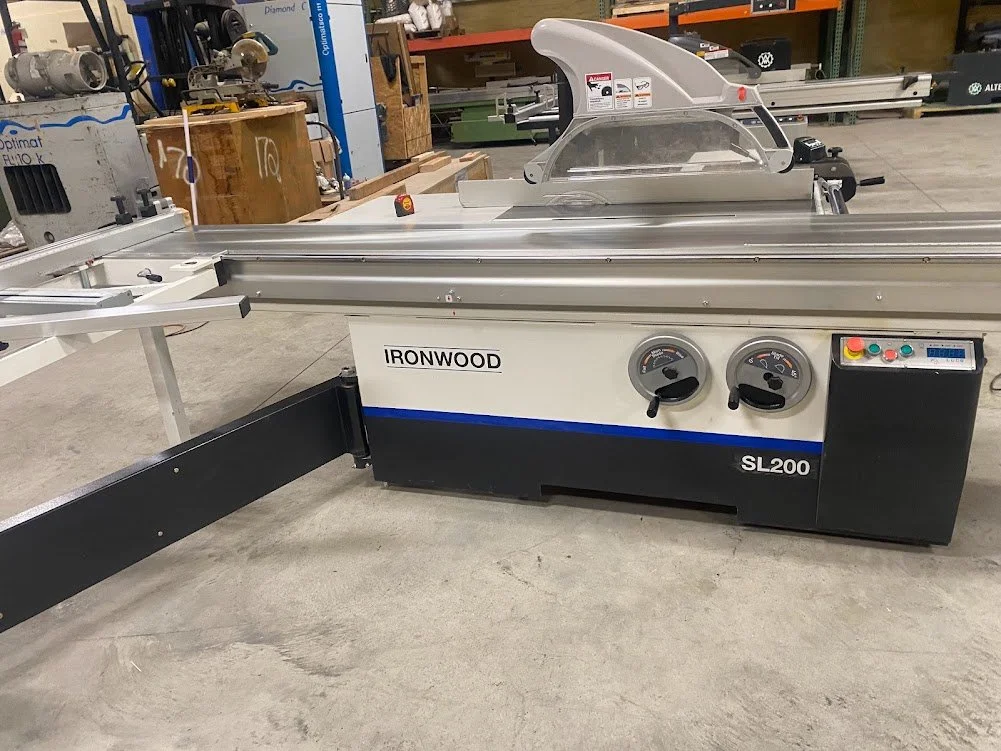

Ironwood 12' Sliding Table Panel Saw 2023 (Used)

IRONWOOD’s SL200 is efficient and versatile.

Handwheels on the machine’s front faces let the operator easily adjust blade height and tilt.

3800mm sliding table for cutting length of 146” with crosscut fence mounted.

• IRONWOOD’s double-roller carriage features a direct vertical load transfer system, to ensure smooth sliding table motion and straight, square, chip free cuts.

• Large hardened steel rollers guide the moving table with absolute precision between the hard-chromed guide bars

• Integrated locking mechanism for locking the sliding table in the forward and middle positions.

• Sliding table length

  3800 mm (149”)

  Cutting length

  3705 mm (146")

  Manual rip fence with fine adjust

  1300 mm (51")

  Crosscut miter fence
  with integrated length compensation

  3200 mm max second flip stop

  Angle Capability Crosscut miter fence

  0º - 49º

  Cutting depth maximum
  (w/ 355 mm (14") max blade)


  90° cuts - 100 mm (3.93")*

  45° cuts - 70 mm (2.75")*

  Main saw motor

  5.5 kw (7.5 HP) IE3 Motor

  Saw speed(s)

  3000/4000/5000 RPM

  Standard main blade

  305 x 3.2 x 30 mm | Z=100

  Main blade arbor diameter

  30 mm

  Scoring saw motor

  0.75 kw (1 HP) 9000 RPM

  Scoring blade diameter

  120 mm (4 3/4”)

  Tilting Capacity

  0 – 45.5°

  Dust channel outlet (saw guard)

                               (machine base)

  76 mm (3”)

  100 mm (3.9”)

  Dust Extraction

  800 CFM min

  Electrical Requirements*

  230V/460V | 3-Phase | 60 Hz.

  Net machine weight

  1100 kg (2,425 lbs.)
