Kentwood 507EL Moulder (Used) Model: 507EL; SN: 1309XXX; Year 2013. 460V; 3Ph; 60Hz.

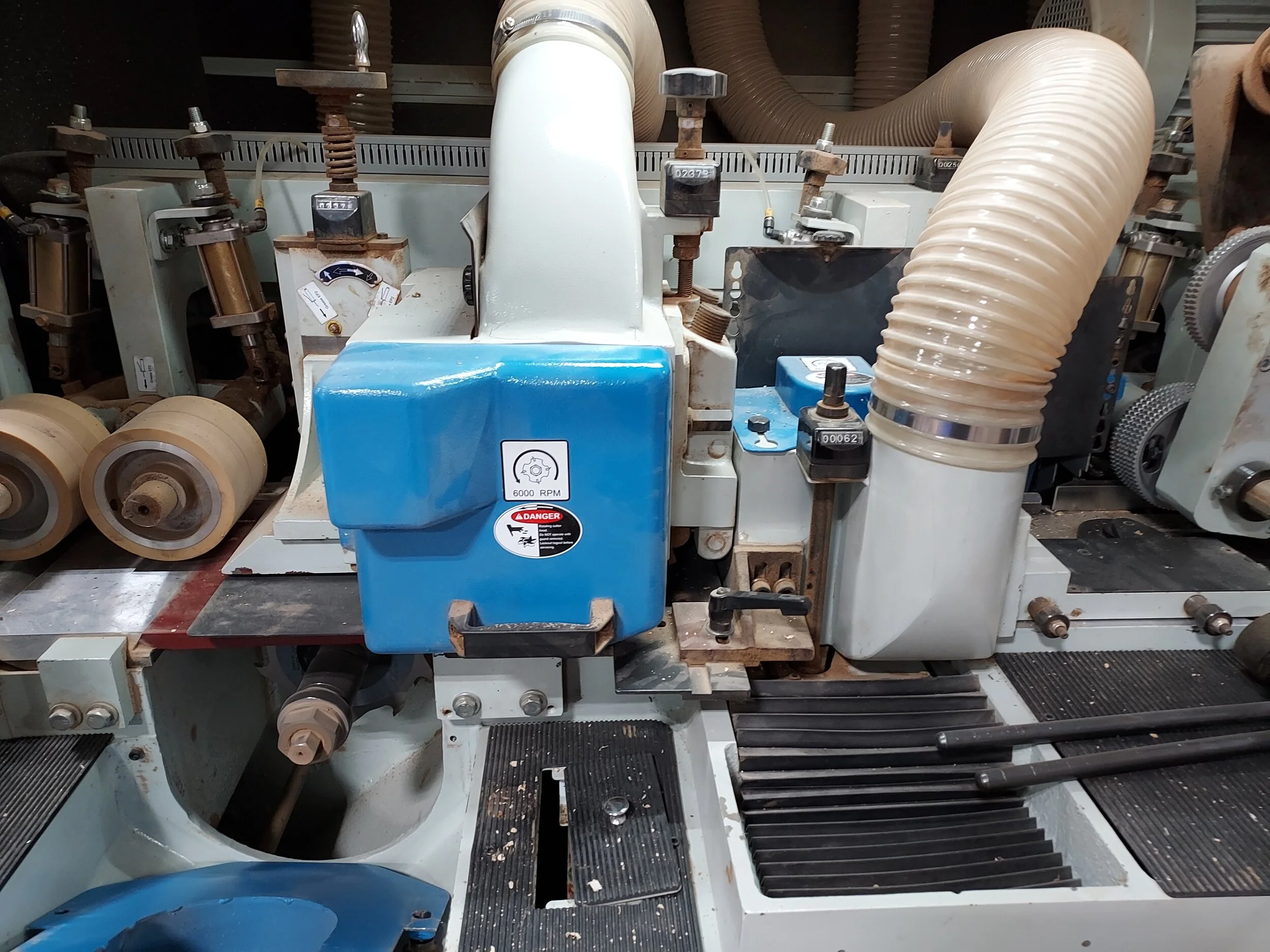

This used five head feed thru moulder was manufactured by Kentwood and it features a working capacity of 5" thick x 7" wide. Includes all manuals and equipment. Tooling including a “Splitting Package” and Manifold also available separately.

• a 7.5 HP motor belted to the first bottom spindle

• a second right spindle

• a third left spindle with a 10 HP belted motor shared

• a fourth top spindle with a 10 HP belted motor

• a fifth bottom spindle with a 10 HP belted motor

Additional Technical Specifications:

• all spindles with electro/mechanical brakes

• 4 HP variable speed feed motor delivering feed rates from 20 to 80 F.P.M

• chainless through-feed feed system with Cardan shaft

• 1 HP feed beam power raising and lowering motor

• electrical controls wired for AC 3/60/230 volt operation

Spindle Specifications

• all spindles are 1-1/2" diameter with cutterhead speed of 6 000 R.P.M

• all spindles adjustments except first bottom head with mechanical digital readout


• left and top spindles with digiset mechanical readouts

• spring-loaded receding chipbreaker (dual segment) for top spindle and a spring-loaded pressure shoe after the top spindle (single segment)

• mechanical digital readout for chipbreaker and pressure element

• seven top pressure rollers and two bed rollers

• side pressure roller at infeed mounted to the infeed table

• 2M 6 foot 6 inch long infeed straightening table with up to 3/8" adjustment

• manual table lubricant pump

• central lubrication system

• chromed table plates and fences; with a short stock feeder opposite fence vertical side

• Model F150-HSP Hydraulic Random Length Hopper Feeder with a capacity of 10" to 256" in lumber length

• full sound and safety enclosure manuals and all related equipment.
