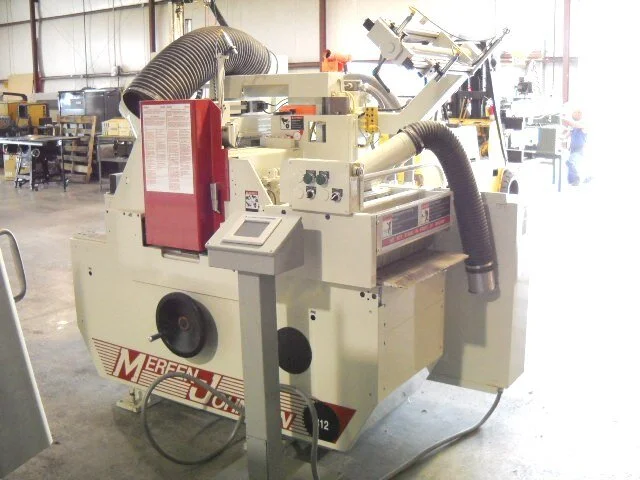

Mereen Johnson 312-DC-SR-1R Selective Gang Rip Saw (USED, 2007)
Mereen Johnson 312-DC-SR-1R Selective Gang Rip Saw (USED, 2007)
Model: 312-DC-SR-1R
SN: SNMJ-72XX
Year: 2007
460V; 60Hz; 3~
Stock#: 1107-19
Product Details
# Select Saw and Horizontal Adjust: (1) Independently adjustable inboard select saw assembly with traveling shoe hold down, powered horizontal adjustment at nominal 4" per second. 1" Minimum distance between adjustable saw and outboard fixed saw. Set up for 12" or 14" diameter face mounted saw blades. Arranged for addition of second inboard select saw assembly. Arranged for integration to Rip Optimizing System(brand to be specified)
# Capacities: 12" Arbor capacity, 3" thickness capacity with 14" Diameter saw blade, 22" minimum part length and a 6" throat
# 50 HP, 3600 RPM, TEFC MJ direct drive arbor motor
# 3 HP TEFC Feed motor; 30' to 150' per minute feed rate; frequency inverter speed control
# 12" Long x 2-9/16" Diameter arbor with 1/2" wide x 1/8" double key - 180° opposed; arranged for Camlock collars
# Laser Guide Lights: (1) Diode laser mounted to shifting saw mechanism. Includes (2) Diode laser machine mounted - 12" width capacity pivoting, extruded aluminum laser bracket arranged for mounting up to (4) diode laser lights with manual horizontal adjustment
# Color touchscreen interface mounted in freestanding control pedestal with 20' SO cord
# Feed bed is 5" pitch Double Vee chain, dip bed, Dual-Life contoured dip cams, aluminum feed slats and steel-backed rubber inserts. Oil mist lube with low level auto shut-off
# Pressure head includes (4) 3" diameter air loaded overhead idle press rolls. Pressure head with hinged access plate top - infeed side of machine. Access plate with hold up device, electric interlock and air cylinder lock out. Arranged for (2) spring loaded traveling shoe hold downs. 1-1/8" Minimum between Camlock mounted saw blades using moving shoe hold downs
# Single bottom and double upper infeed and single upper outfeed Anti-Kickback Assemblies
# Includes (2) upper dust hoods: (1) 10" diameter at outfeed and (1) 5" diameter at anti-kickback. (1) Lower 5" diameter at lower outfeed
# Includes used tooling: Sawblades and (2) Camlock Collars
Mereen Johnson 312-DC-SR-1R Selective Gang Rip Saw (USED, 2007)
Model: 312-DC-SR-1R
SN: SNMJ-72XX
Year: 2007
460V; 60Hz; 3~
Stock#: 1107-19
Product Details
# Select Saw and Horizontal Adjust: (1) Independently adjustable inboard select saw assembly with traveling shoe hold down, powered horizontal adjustment at nominal 4" per second. 1" Minimum distance between adjustable saw and outboard fixed saw. Set up for 12" or 14" diameter face mounted saw blades. Arranged for addition of second inboard select saw assembly. Arranged for integration to Rip Optimizing System(brand to be specified)
# Capacities: 12" Arbor capacity, 3" thickness capacity with 14" Diameter saw blade, 22" minimum part length and a 6" throat
# 50 HP, 3600 RPM, TEFC MJ direct drive arbor motor
# 3 HP TEFC Feed motor; 30' to 150' per minute feed rate; frequency inverter speed control
# 12" Long x 2-9/16" Diameter arbor with 1/2" wide x 1/8" double key - 180° opposed; arranged for Camlock collars
# Laser Guide Lights: (1) Diode laser mounted to shifting saw mechanism. Includes (2) Diode laser machine mounted - 12" width capacity pivoting, extruded aluminum laser bracket arranged for mounting up to (4) diode laser lights with manual horizontal adjustment
# Color touchscreen interface mounted in freestanding control pedestal with 20' SO cord
# Feed bed is 5" pitch Double Vee chain, dip bed, Dual-Life contoured dip cams, aluminum feed slats and steel-backed rubber inserts. Oil mist lube with low level auto shut-off
# Pressure head includes (4) 3" diameter air loaded overhead idle press rolls. Pressure head with hinged access plate top - infeed side of machine. Access plate with hold up device, electric interlock and air cylinder lock out. Arranged for (2) spring loaded traveling shoe hold downs. 1-1/8" Minimum between Camlock mounted saw blades using moving shoe hold downs
# Single bottom and double upper infeed and single upper outfeed Anti-Kickback Assemblies
# Includes (2) upper dust hoods: (1) 10" diameter at outfeed and (1) 5" diameter at anti-kickback. (1) Lower 5" diameter at lower outfeed
# Includes used tooling: Sawblades and (2) Camlock Collars
Mereen Johnson 312-DC-SR-1R Selective Gang Rip Saw (USED, 2007)
Model: 312-DC-SR-1R
SN: SNMJ-72XX
Year: 2007
460V; 60Hz; 3~
Stock#: 1107-19
Product Details
# Select Saw and Horizontal Adjust: (1) Independently adjustable inboard select saw assembly with traveling shoe hold down, powered horizontal adjustment at nominal 4" per second. 1" Minimum distance between adjustable saw and outboard fixed saw. Set up for 12" or 14" diameter face mounted saw blades. Arranged for addition of second inboard select saw assembly. Arranged for integration to Rip Optimizing System(brand to be specified)
# Capacities: 12" Arbor capacity, 3" thickness capacity with 14" Diameter saw blade, 22" minimum part length and a 6" throat
# 50 HP, 3600 RPM, TEFC MJ direct drive arbor motor
# 3 HP TEFC Feed motor; 30' to 150' per minute feed rate; frequency inverter speed control
# 12" Long x 2-9/16" Diameter arbor with 1/2" wide x 1/8" double key - 180° opposed; arranged for Camlock collars
# Laser Guide Lights: (1) Diode laser mounted to shifting saw mechanism. Includes (2) Diode laser machine mounted - 12" width capacity pivoting, extruded aluminum laser bracket arranged for mounting up to (4) diode laser lights with manual horizontal adjustment
# Color touchscreen interface mounted in freestanding control pedestal with 20' SO cord
# Feed bed is 5" pitch Double Vee chain, dip bed, Dual-Life contoured dip cams, aluminum feed slats and steel-backed rubber inserts. Oil mist lube with low level auto shut-off
# Pressure head includes (4) 3" diameter air loaded overhead idle press rolls. Pressure head with hinged access plate top - infeed side of machine. Access plate with hold up device, electric interlock and air cylinder lock out. Arranged for (2) spring loaded traveling shoe hold downs. 1-1/8" Minimum between Camlock mounted saw blades using moving shoe hold downs
# Single bottom and double upper infeed and single upper outfeed Anti-Kickback Assemblies
# Includes (2) upper dust hoods: (1) 10" diameter at outfeed and (1) 5" diameter at anti-kickback. (1) Lower 5" diameter at lower outfeed
# Includes used tooling: Sawblades and (2) Camlock Collars
*This machine is offered in good running condition as taken from service and is subject to prior sale. Specifications are approximate and to the best of our knowledge. Verification is available upon request.
