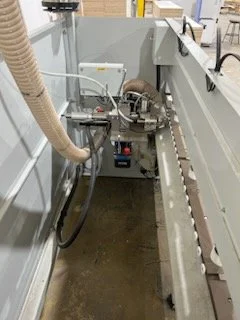

Omal Velox 1300 Drill and Dowel Inserter (Used)
OMAL machines are built for maximum durability. The frame is constructed with 10mm thick tubular steel which is internally welded and gusseted every 400mm for strength and rigidity. It is then heat treated and cooled slowly to make a stress-free, reliable machine.
Machine Operation
ELCO Top 7 Touchscreen Interface
The Velox machine is equipped with a touchscreen HMI and user friendly software. Programmable dowel layout is managed by the editor software included on the HMI. Programs can be written parametrically and are generated using graphical icons (drill, glue, dowel check boxes). The selection of the offset of tools for inserting and for operations on different left and right hand references is automatic.
The machine is programmable in the X axis and equipped with precision brushless motor, ball nut and ball screw for quick positioning. The movement of the carriage is on linear rails with square guides.
OMAL VELOX 1300 CNC BORE, GLUE & DOWEL INSERTER W/Optional LASER MEASURING SYSTEM:
-- Specifications:
PLC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc., at random spacing.
-- Features:
-- Working Capacity:
51" (1,300 mm) In X-axis work area, 1.57" Y-axis stroke with manual depth setting, 1.57" Z-axis stroke with manual vertical settings.
10 mm to 30 mm (0.39" - 1.18") Material thickness capacity in the "Z" axis.
The machine is currently set up for 8 mm dia. x 30 mm long max. dowel dimension.
-- Work Areas:
(2) Loading zones with a cycle time of one second for each bore, glue and dowel insertion when holes are on 32 mm intervals.
Equipped with a brushless motor, ball nut and ball screw for quick positioning,
-- Dowel Inserter:
OMAL "SURE SHOT" revolver system guarantees a dowel is inserted every time.
