Pro Edge CNC Dovetail Machine Model: CN700 (2019)

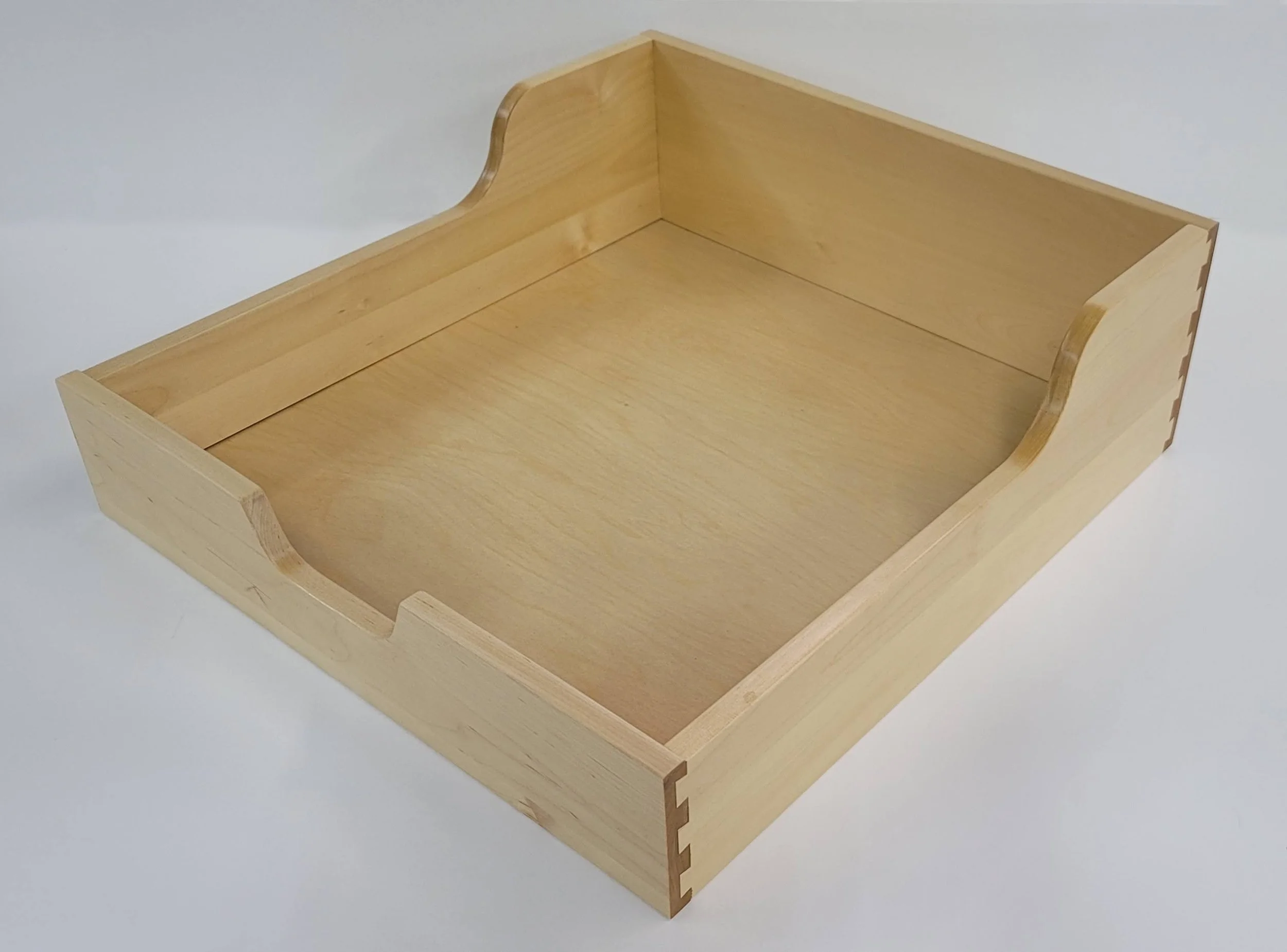

The CNC700 Dovetail Machine is a multifunctional drawer box machining center. The machining
can be configured to do Dovetail, French Dovetail, Straight Dovetail and Irregular Spaced
Dovetails. Parts are placed starting in the first work zone on the right -hand side of the
machine referencing the back and side fences. Once the parts have been machined in the first zone
they are rotated to the second zone on the left-hand side of the machine processing the second
side of the drawer box. While the CNC is processing on one side the other side can be unloaded
and reloaded for automatic continuous cycling. The CNC700 has a 600 drawer box capacity, per 8
hour shift.
Technical Parameters:
MODEL: CNC700
• X-Axis

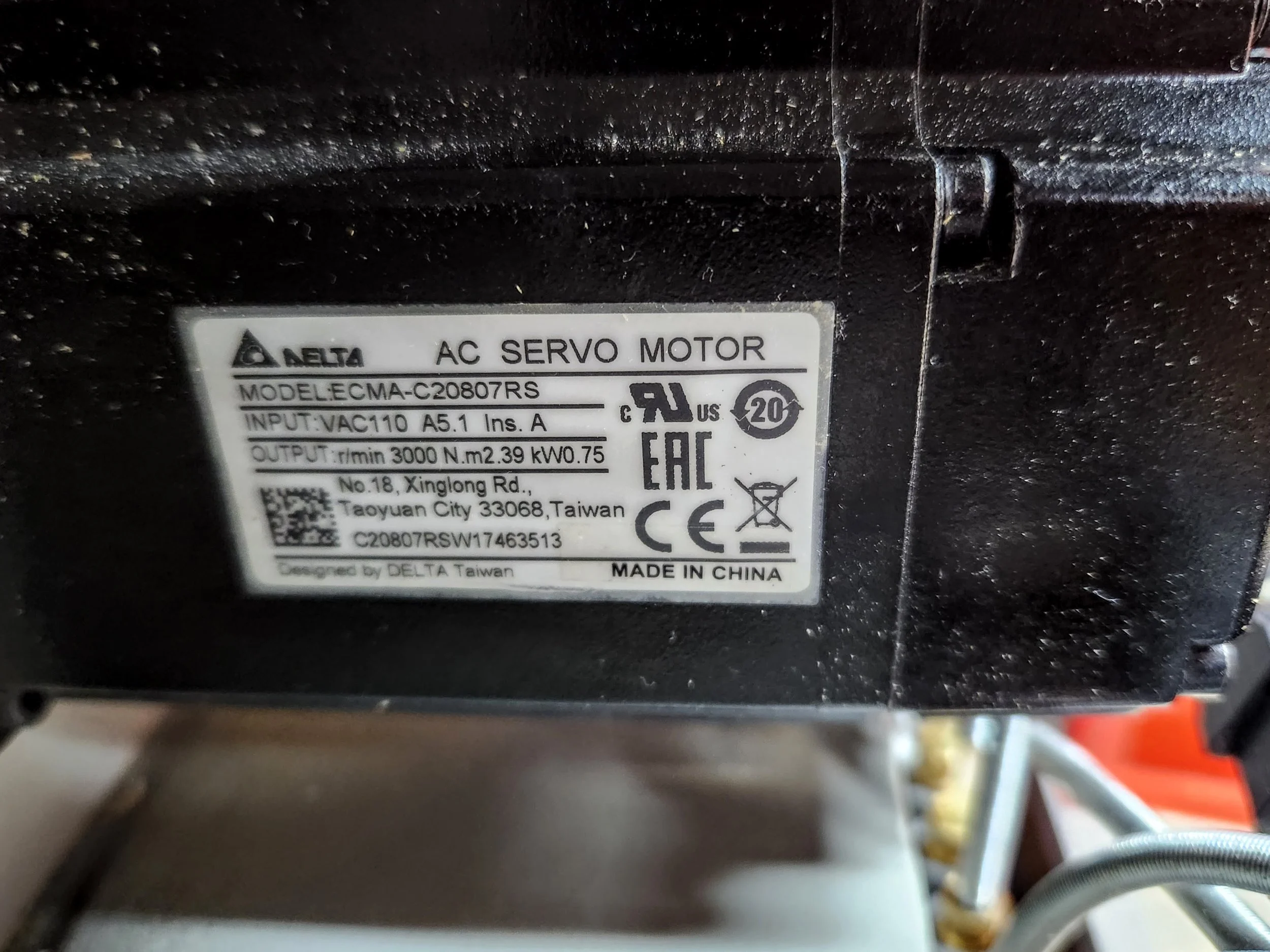

• Y-Axis Spindle motor
Total installation power
750W
750W
1100W
3100W approx.
Dust extraction hoods Air pressure Processing width Processing thickness Bit Rotation
Bit Shank ER25 Collet
CNC
• Motion Coordinators Model
• Power Supply
• Display

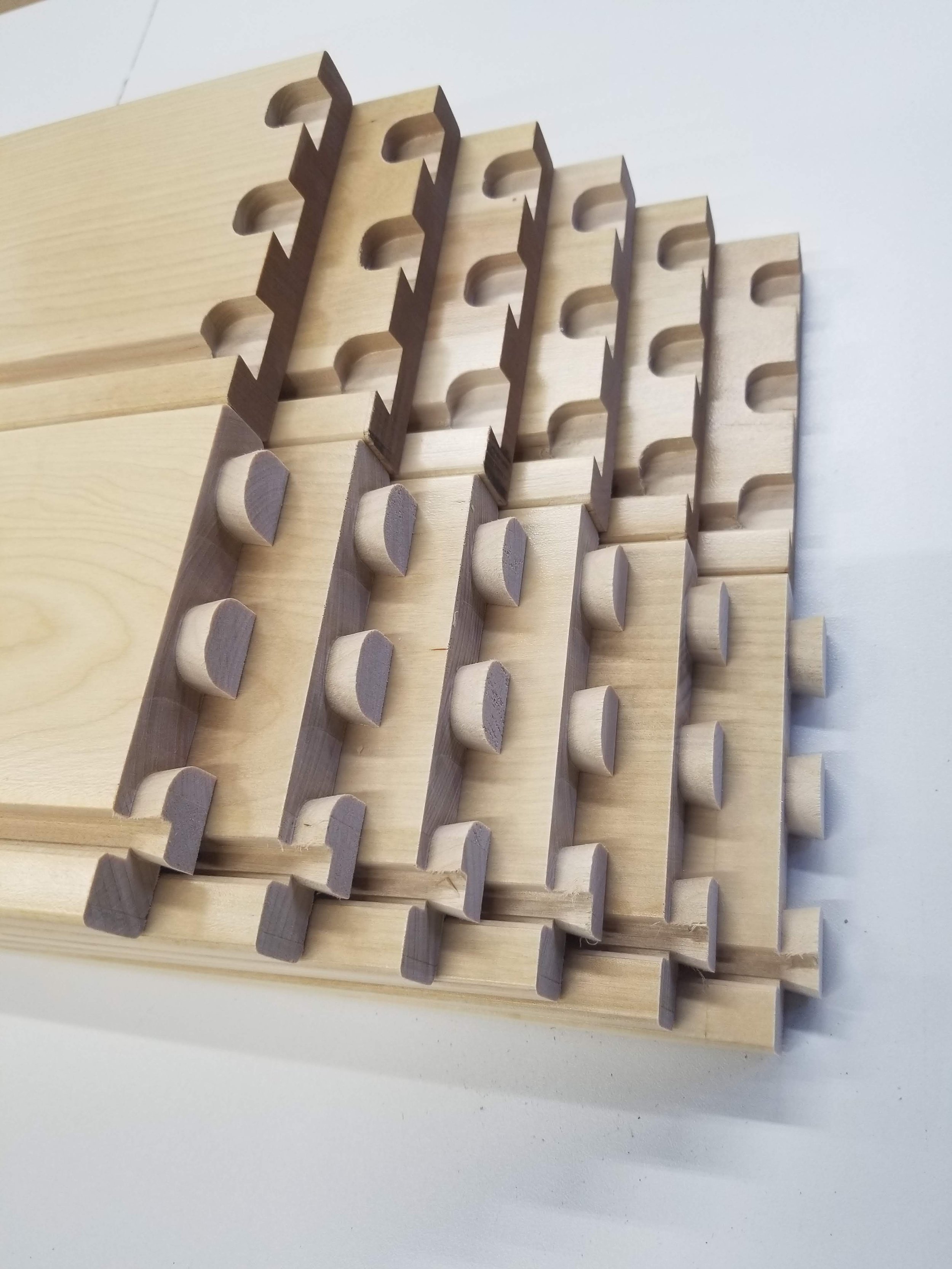

Machinable tenon samples (below) Packing dimensions
Net weight/gross weight
2 @ 100 mm (diameter)
6 bar / 90 psi
700 mm
5-25 mm
17400 rpm
Φ4-16mm
TRIO (www.triomotion.com) DC 24V
HMI DC 24V A, B, C, D, E
1255x785x1150(mm) / 50x30x45
(inch)
513kg/600kg - 1150lb/1325lb
