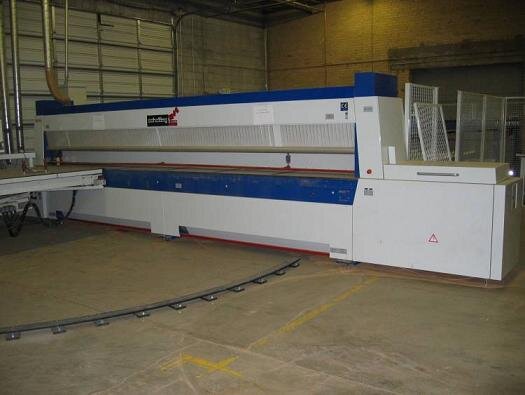

Schelling FLH580 Panel Saw (USED, 2006)
Schelling FLH580 Panel Saw (USED, 2006)
Model: FLH580
SN: XXXX
Year: 2006
460V; 60Hz; 3~
Stock#: 1012-11
Product Details
228" (5,800 mm) Cutting length & 5.1" (130 mm) max. saw blade projection, 25 HP main & 2 HP scoring motor, 18" main & 8" scoring blade dia.; variable saw carriage travel speed 3 - 328 FPM, constant return of 328 FPM.

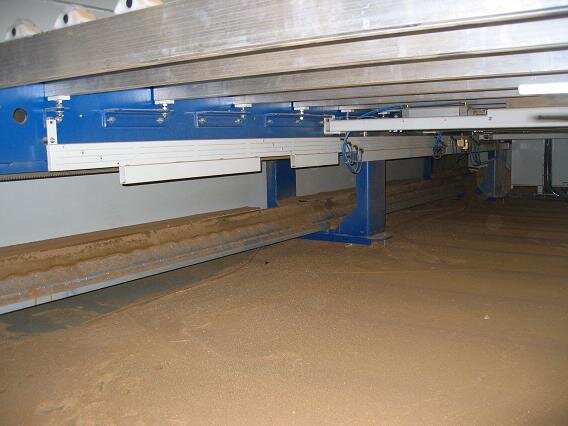

Electronically controlled overhead program fence with rack & pinion drive; forward speed 0 - 82 FPM, return speed 210 FPM, fence equipped with: (18) Clamps (open up to 5-1/4").
SCHELLING "COMMANDER" Control with VGA color monitor (displays cutting dimensions and patterns w/moving graphics), (80,000) available lines of memory, self-diagnostic, data input by keyboard or direct downloading from office PC is possible.
Equipped with: 2,300 mm Long crosscut fence (front-to-back), (2) side/crosscut aligners for up to 87" crosscutting width (1) in front & (1) back pressure beam.

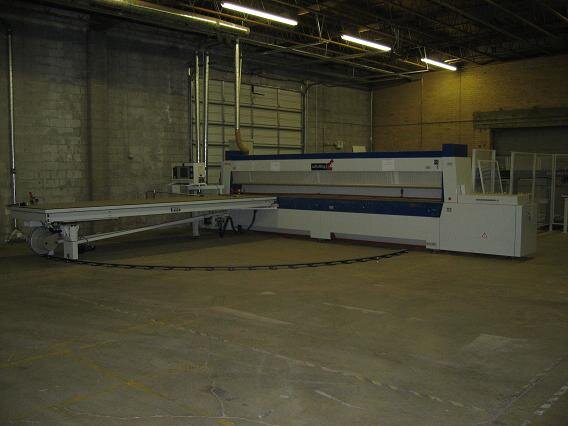

Includes: (1) SCHELLING Powered rotating 0° - 90° solid front support table with air floatation for moving panel from rip position to crosscut position.

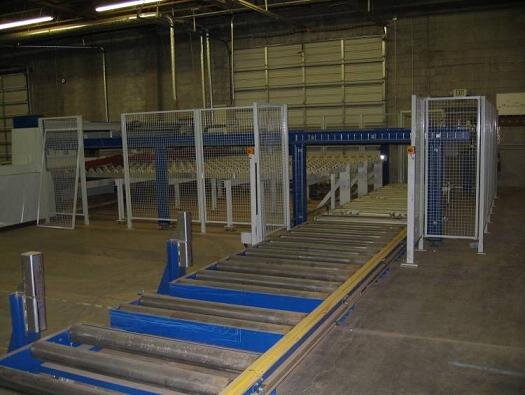

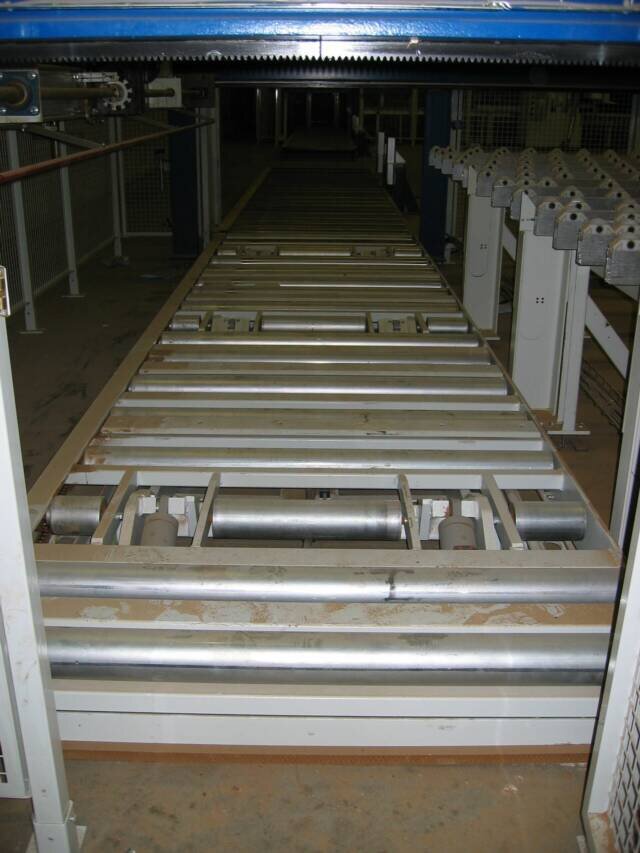

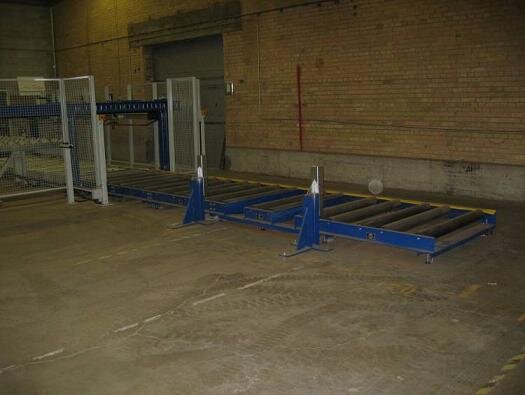

228" long x 62.5" wide Rear infeed systems with powered rollers, loading from the back RH side, (3) electro-pneumatic aligning devices for feeding from lift.
Machine fully enclosed for safety with man-height sheet metal panels & wire screen windows.
Actual model is SCHELLING "FLH 580/510".
Schelling FLH580 Panel Saw (USED, 2006)
Model: FLH580
SN: XXXX
Year: 2006
460V; 60Hz; 3~
Stock#: 1012-11
Product Details
228" (5,800 mm) Cutting length & 5.1" (130 mm) max. saw blade projection, 25 HP main & 2 HP scoring motor, 18" main & 8" scoring blade dia.; variable saw carriage travel speed 3 - 328 FPM, constant return of 328 FPM.
Electronically controlled overhead program fence with rack & pinion drive; forward speed 0 - 82 FPM, return speed 210 FPM, fence equipped with: (18) Clamps (open up to 5-1/4").
SCHELLING "COMMANDER" Control with VGA color monitor (displays cutting dimensions and patterns w/moving graphics), (80,000) available lines of memory, self-diagnostic, data input by keyboard or direct downloading from office PC is possible.
Equipped with: 2,300 mm Long crosscut fence (front-to-back), (2) side/crosscut aligners for up to 87" crosscutting width (1) in front & (1) back pressure beam.
Includes: (1) SCHELLING Powered rotating 0° - 90° solid front support table with air floatation for moving panel from rip position to crosscut position.
228" long x 62.5" wide Rear infeed systems with powered rollers, loading from the back RH side, (3) electro-pneumatic aligning devices for feeding from lift.
Machine fully enclosed for safety with man-height sheet metal panels & wire screen windows.
Actual model is SCHELLING "FLH 580/510".
Schelling FLH580 Panel Saw (USED, 2006)
Model: FLH580
SN: XXXX
Year: 2006
460V; 60Hz; 3~
Stock#: 1012-11
Product Details
228" (5,800 mm) Cutting length & 5.1" (130 mm) max. saw blade projection, 25 HP main & 2 HP scoring motor, 18" main & 8" scoring blade dia.; variable saw carriage travel speed 3 - 328 FPM, constant return of 328 FPM.
Electronically controlled overhead program fence with rack & pinion drive; forward speed 0 - 82 FPM, return speed 210 FPM, fence equipped with: (18) Clamps (open up to 5-1/4").
SCHELLING "COMMANDER" Control with VGA color monitor (displays cutting dimensions and patterns w/moving graphics), (80,000) available lines of memory, self-diagnostic, data input by keyboard or direct downloading from office PC is possible.
Equipped with: 2,300 mm Long crosscut fence (front-to-back), (2) side/crosscut aligners for up to 87" crosscutting width (1) in front & (1) back pressure beam.
Includes: (1) SCHELLING Powered rotating 0° - 90° solid front support table with air floatation for moving panel from rip position to crosscut position.
228" long x 62.5" wide Rear infeed systems with powered rollers, loading from the back RH side, (3) electro-pneumatic aligning devices for feeding from lift.
Machine fully enclosed for safety with man-height sheet metal panels & wire screen windows.
Actual model is SCHELLING "FLH 580/510".
*This machine is offered in good running condition as taken from service and is subject to prior sale. Specifications are approximate and to the best of our knowledge. Verification is available upon request.
