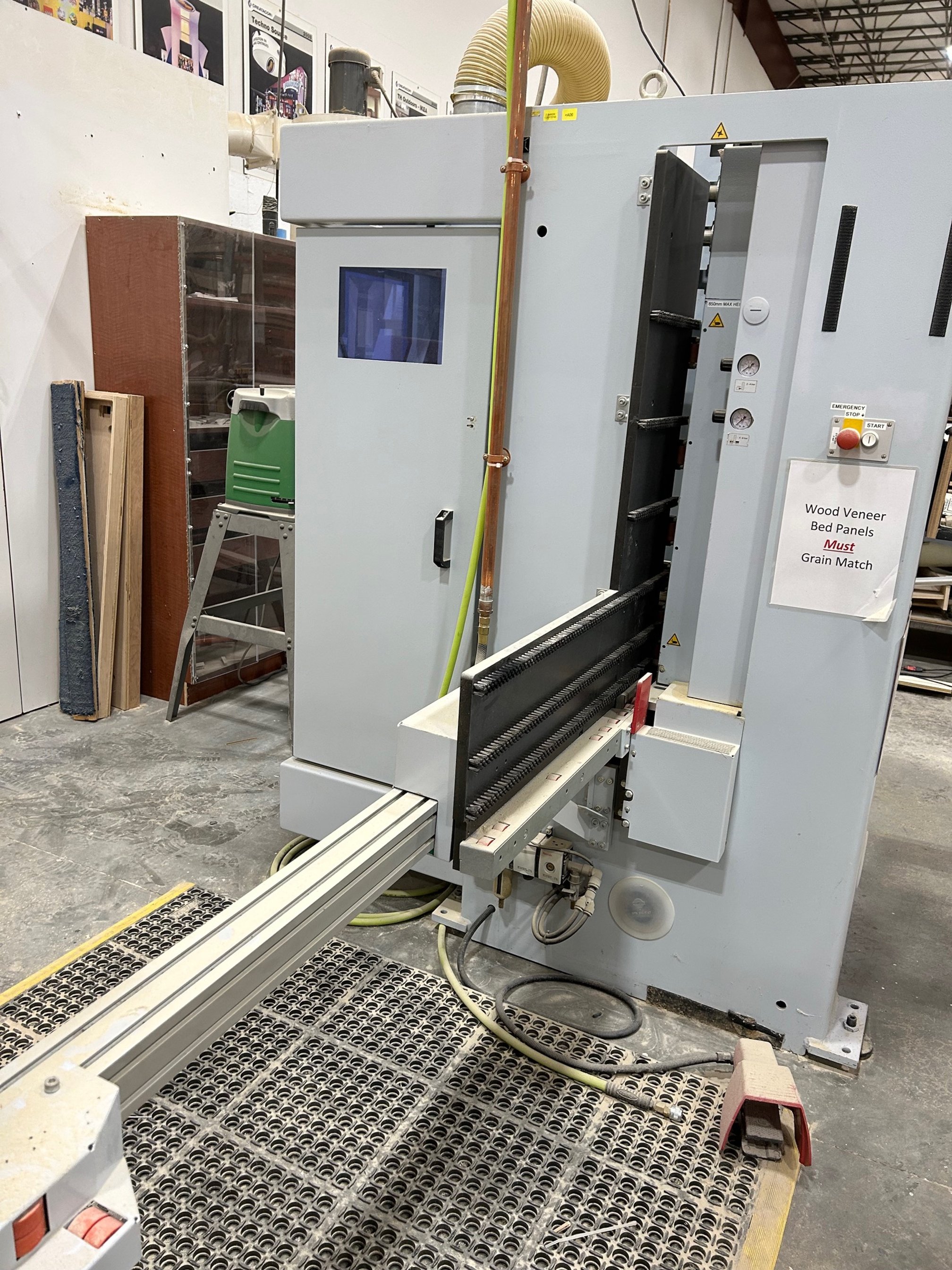

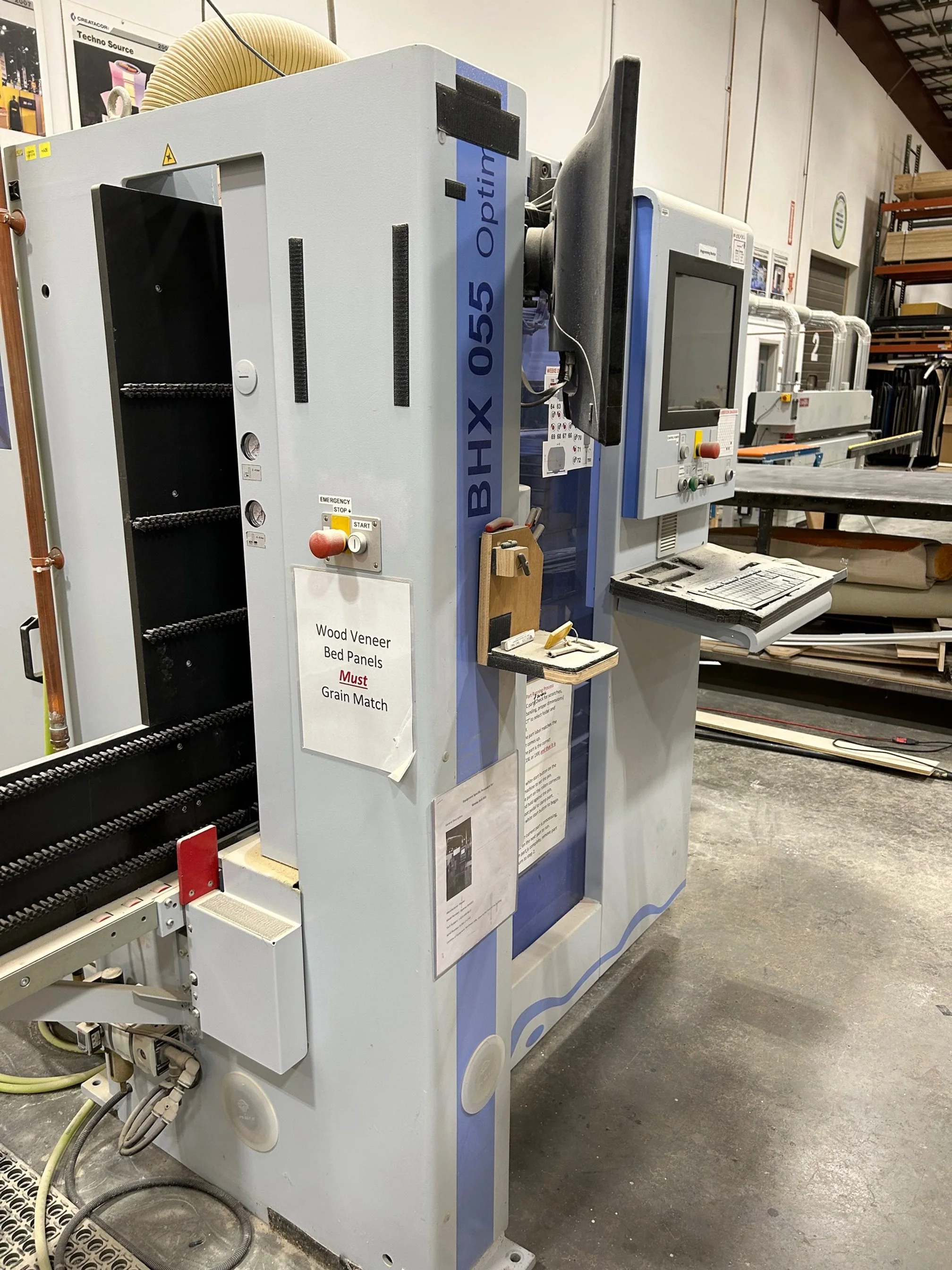

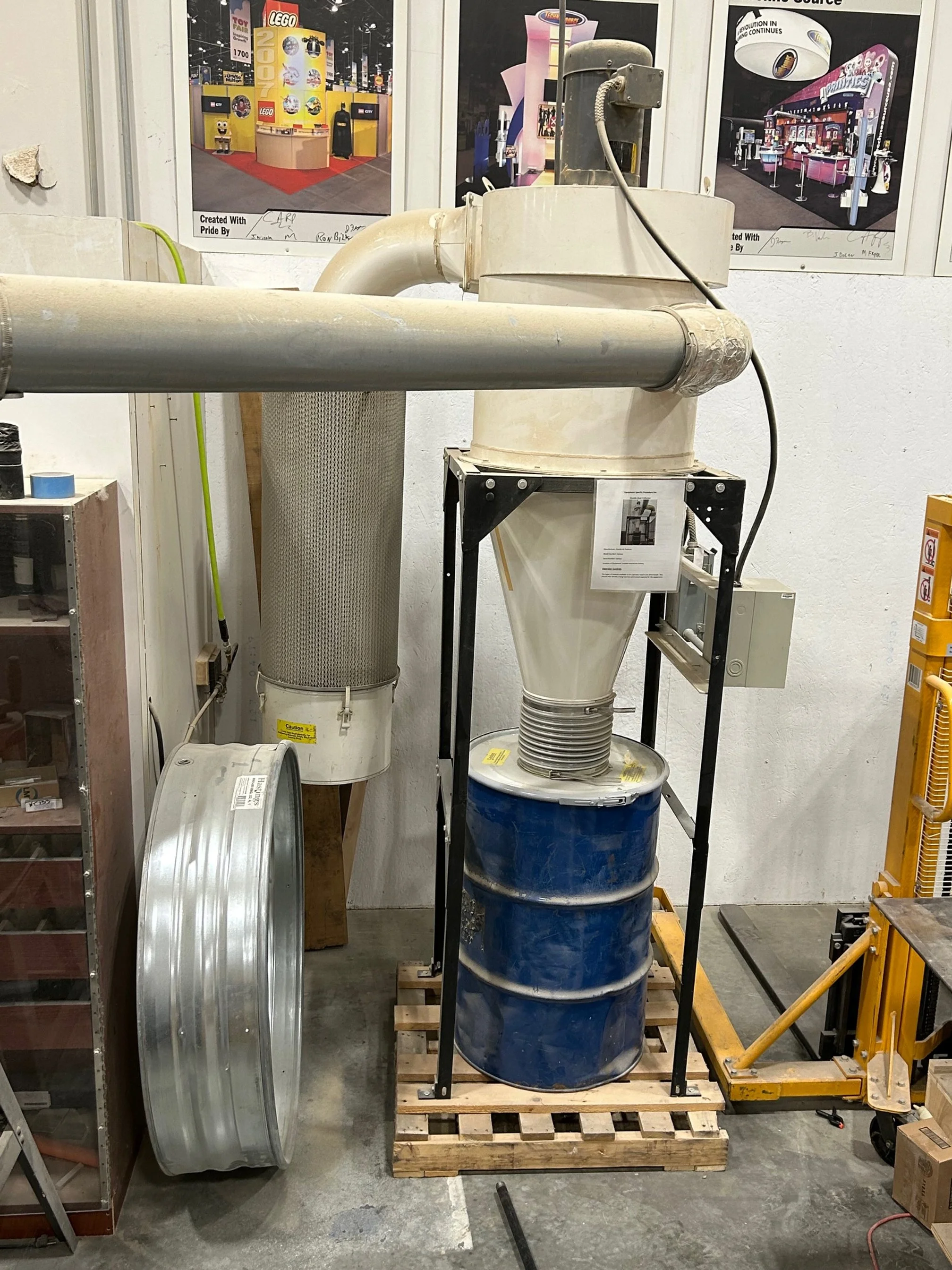

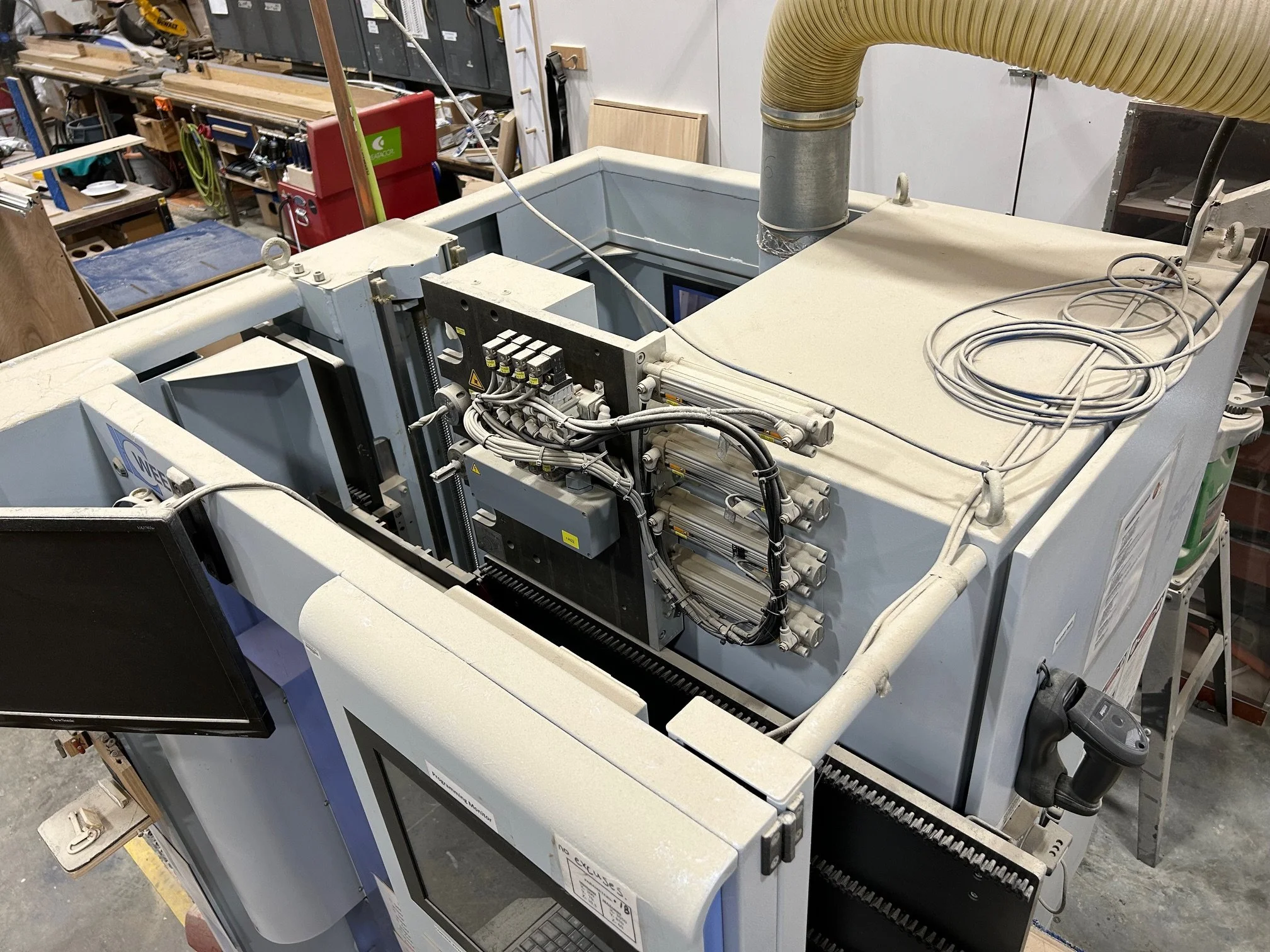

Weeke (Homag) BHX 055 sold with Dust Collector 2015 (Used)

WEEKE - BHX 055: CNC Boring Machine.
-- Specifications
Flexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space in addition to an innovative panel handling system.
-- Working Cap.:
Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm), max. part thickness 2.4" (60 mm).

Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side.
-- Positioning Speed
The "BHX 055" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety - providing an unmatched working capacity.

Detail:

• X-Axis Max. Working Length: 120.08"

• Y-Axis Max. Working Width: 33.46"

• Maximum Part Thickness: 60mm

• 13 Vertical Drilling Spindles

• Four Horizontal Drilling Spindles in X

• Two Horizontal Drilling Spindles in Y

• One Grooving Saw in X

  -- Boring Unit:
  (1) 3 HP (2.3 kW) Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) Spindles in "X" axis & (5) spindles in "Y" axis.
  (4) Horizontal spindles with: (1 + 1) in "X" Axis & (1 + 1) in "Y" axis.
  Boring block with "Quick Change" vertical spindle system.

Detail:

10 HP Router Spindle

• Four-Position Automatic Tool Changer

• Router Spindle Accepts HSK-63 Tool Holders

• 480v, 3ph
